Name: CompuCablePlusUSA Short Boot LC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F3-SDLCST-01M
Price: 15.0 USD
Availability: InStock

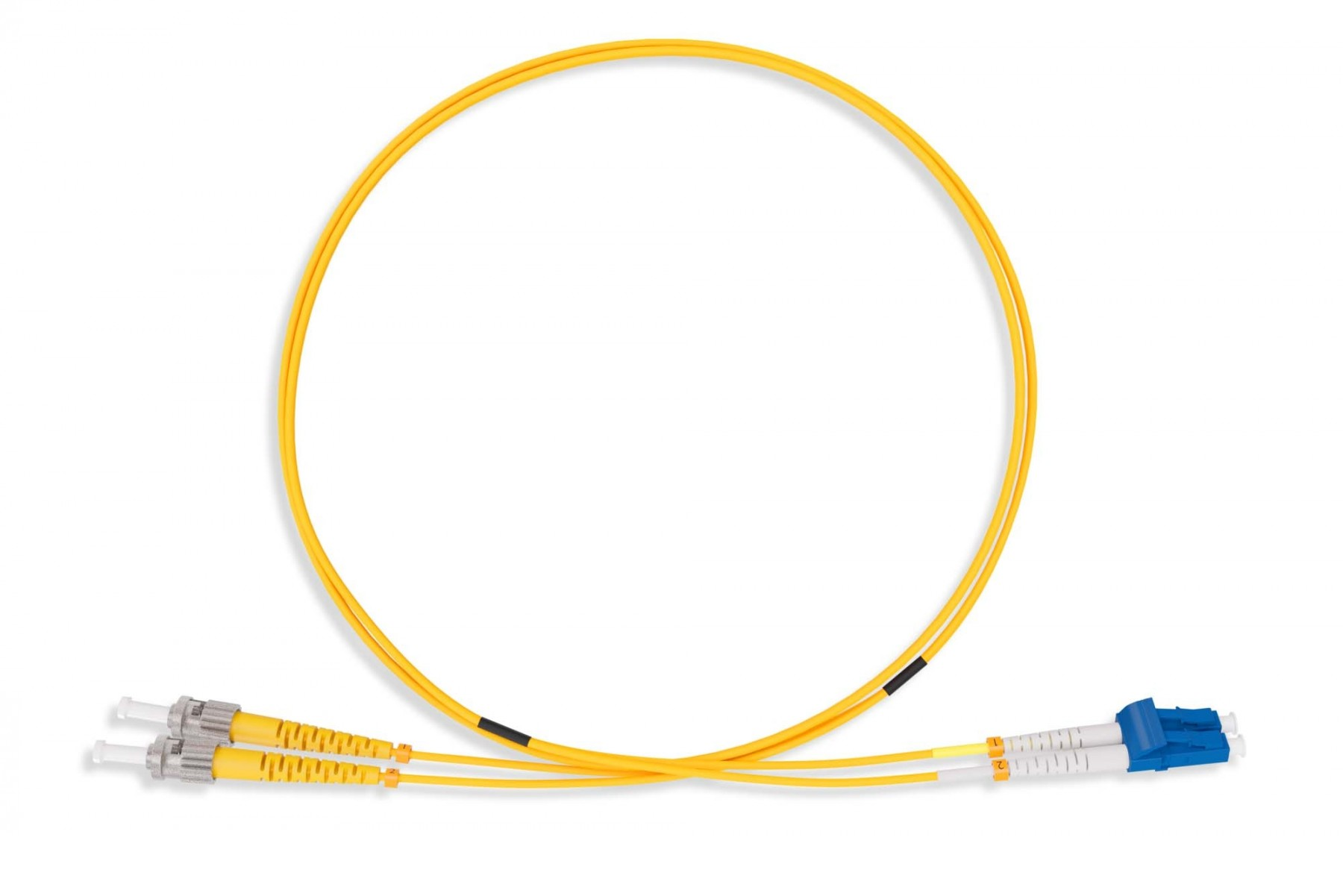

CompuCablePlusUSA.com Short Boot LC to ST Single Mode Fiber Optic Patch Cable Duplex OS2 9/125 Core.

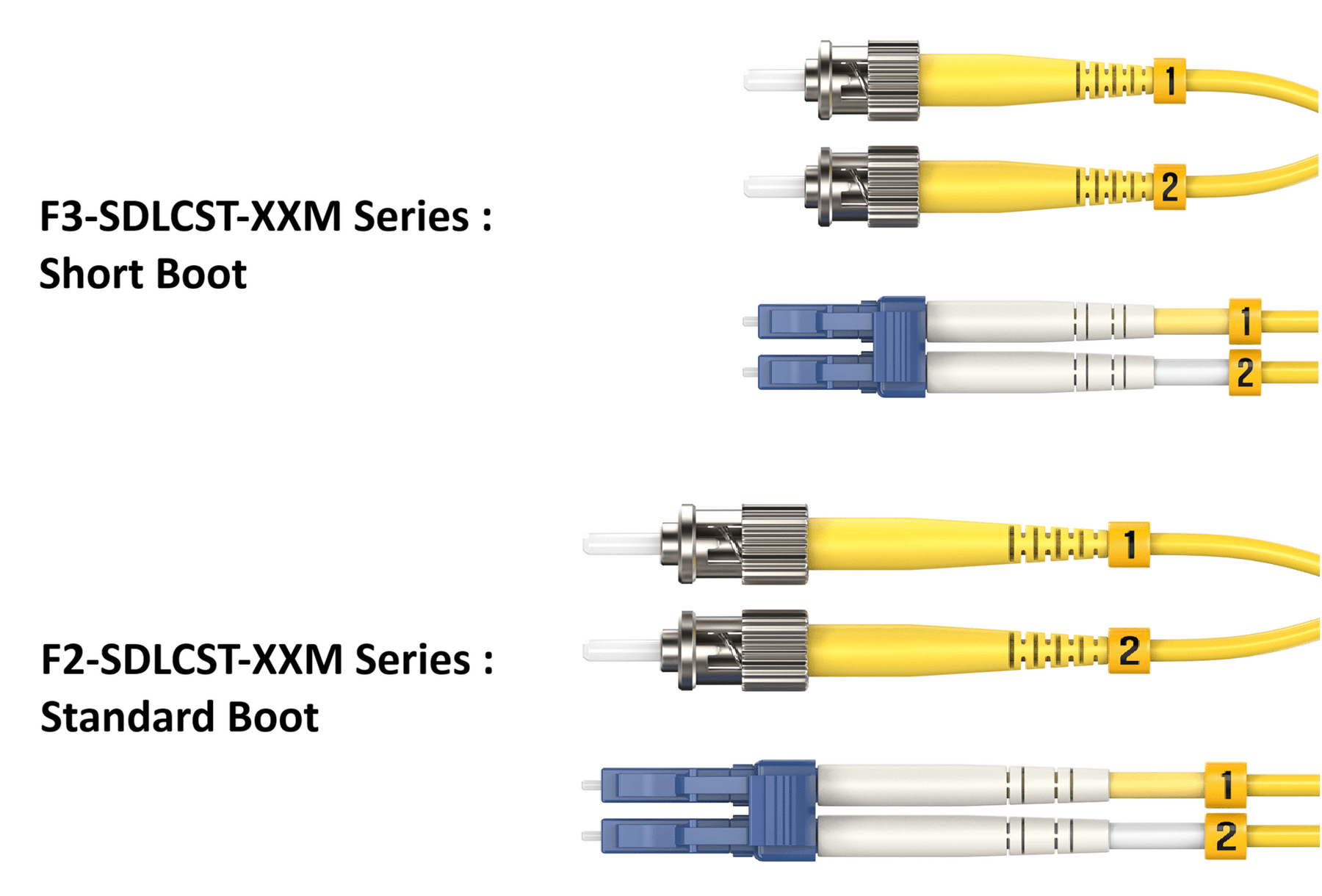

CompuCablePlusUSA.com Short Boot LC to ST Single Mode Fiber Optic Patch Cable Duplex OS2 9/125 Core. It shows the difference between short boot and standard boot with different part numbers.

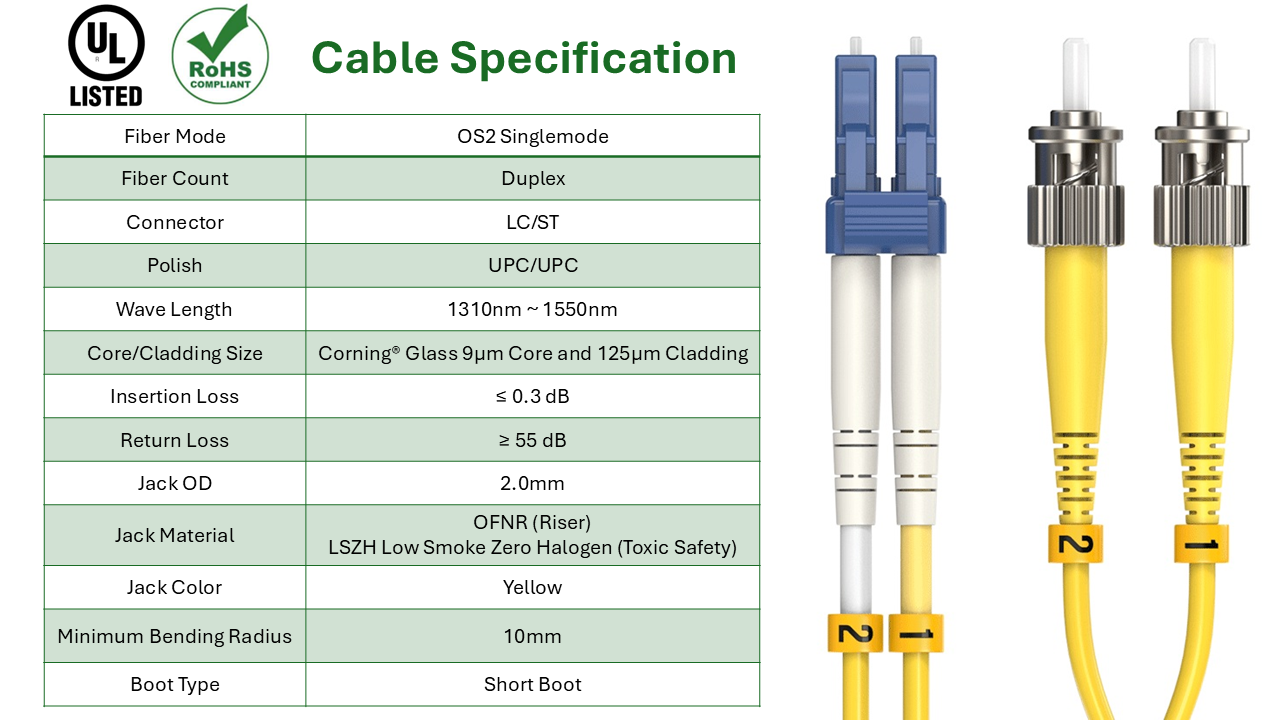

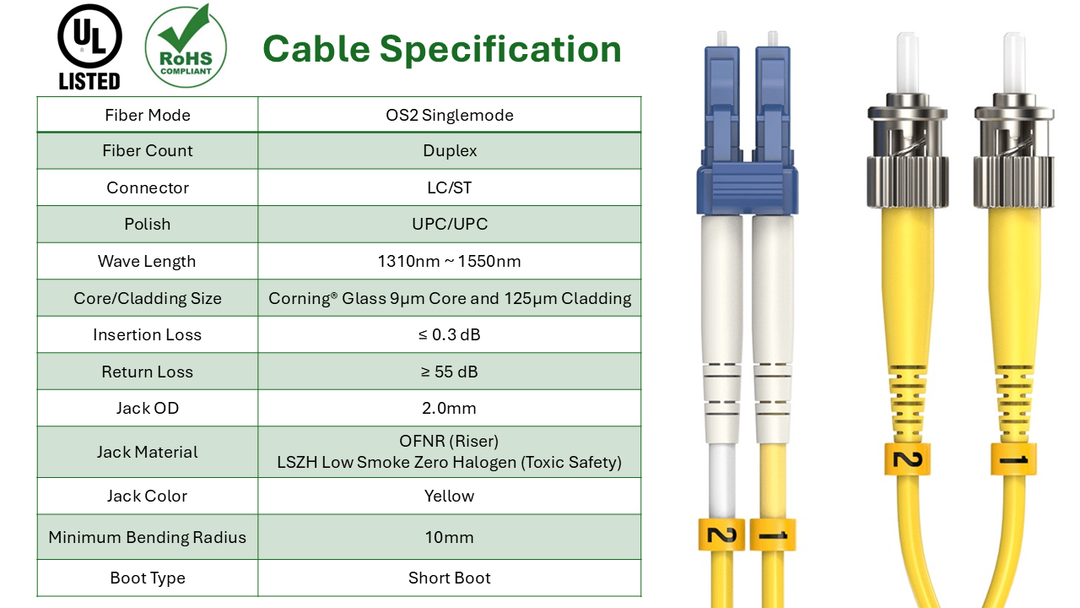

CompuCablePlusUSA.com Short Boot LC to ST Single Mode Fiber Optic Patch Cable Duplex OS2 9/125 Core Cable Specification.

$15.00

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA Short Boot LC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, 1M

Features

Premium Corning® Glass: Features a high-quality 9μm core and 125μm cladding for superior light transmission and longevity.
OS2 Single-Mode Performance: Optimized for 1310nm and 1550nm wavelengths, providing an ideal solution for long-range, high-bandwidth networking.
Precision Connectors: LC to ST Duplex interface with UPC-to-UPC polish, ensuring an insertion loss of ≤ 0.3 dB and a return loss of ≥ 55 dB for peak signal integrity.
Dual-Rated Safety Jacket: LSZH (Low Smoke Zero Halogen) and OFNR (Riser) rated, perfect for vertical shafts and safety-conscious environments.

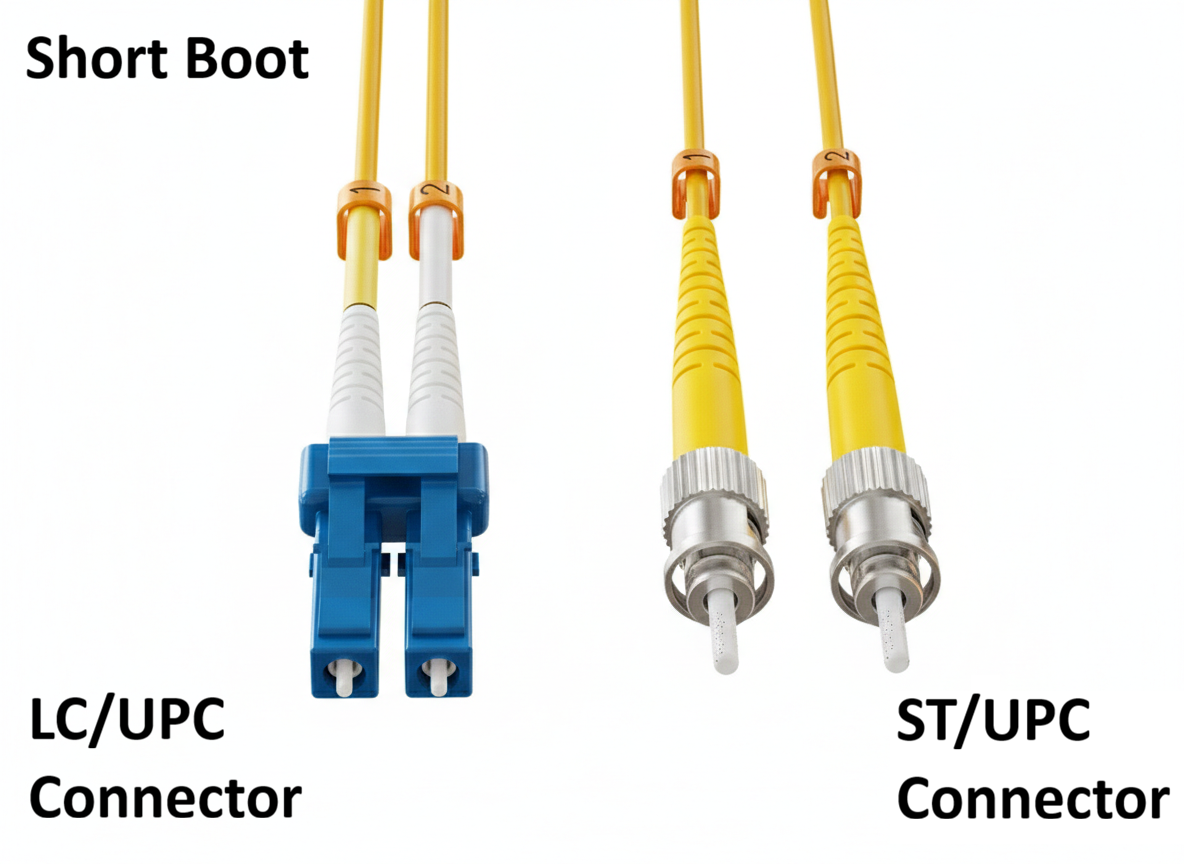

High-Density Optimized: Small form-factor LC connectors and a Short Boot design minimize large curve loss and fit easily into tight spaces.
Durability & Flexibility: A 2.0mm jacket OD with a 10mm minimum bending radius allows for easy routing without compromising performance.
Versatile Lengths: Available in multiple length options to suit any data center or office configuration.
Certified Quality: Fully UL Listed and RoHS compliant; every package includes a dedicated test report for peace of mind.
Length: 1 Meter.

Product Description

Experience uncompromised data integrity with our LC to ST Duplex Single-Mode Fiber Optic Cable. Engineered for high-performance long-range networking, this OS2 cable is the definitive solution for Fast Ethernet, Gigabit Ethernet, and demanding enterprise data applications. By utilizing a 9/125μm Corning® Glass core, it ensures minimal signal attenuation and maximum reliability over vast distances, making it ideal for campus backbones and metropolitan networks.

Designed with modern infrastructure in mind, this cable features a low-profile short boot design and a compact LC connector, perfect for high-density patch panels and congested server rooms. The dual-rated LSZH/OFNR (Riser) jacket provides a versatile safety profile, allowing for seamless installation in upright shafts and between floors while meeting strict toxic safety standards. Each cable is factory-tested and includes a performance report, guaranteeing professional-grade quality for your mission-critical connections.

Part No F3-SDLCST-01M

UPC 618504196787
