Name: CompuCablePlusUSA Short Boot ST to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F3-SDSTST-01M
Price: 15.75 USD
Availability: InStock

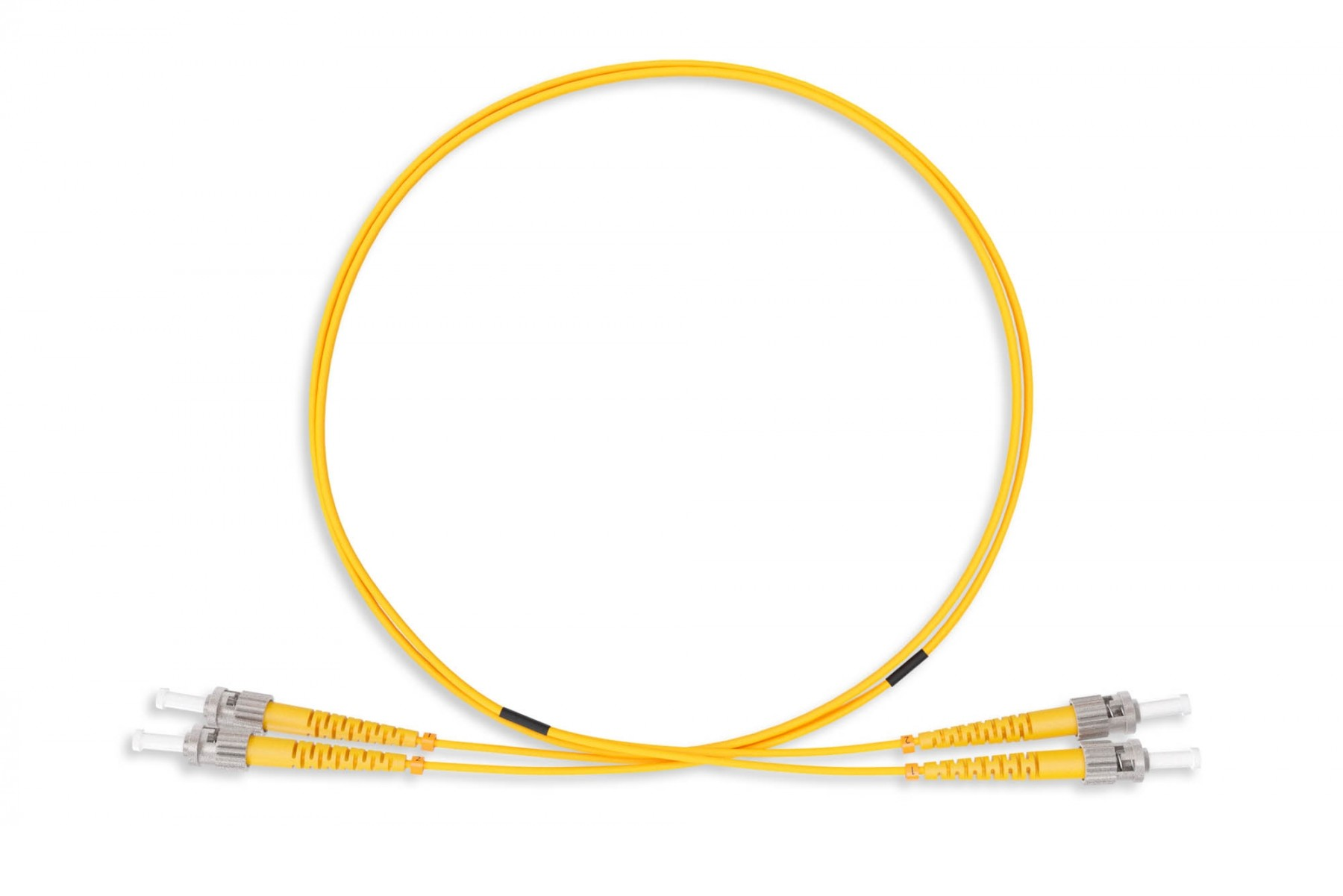

CompuCablePlusUSA.com Short Boot ST to ST Single Mode Fiber Optic Cable OS2 Duplex Corning Glass.

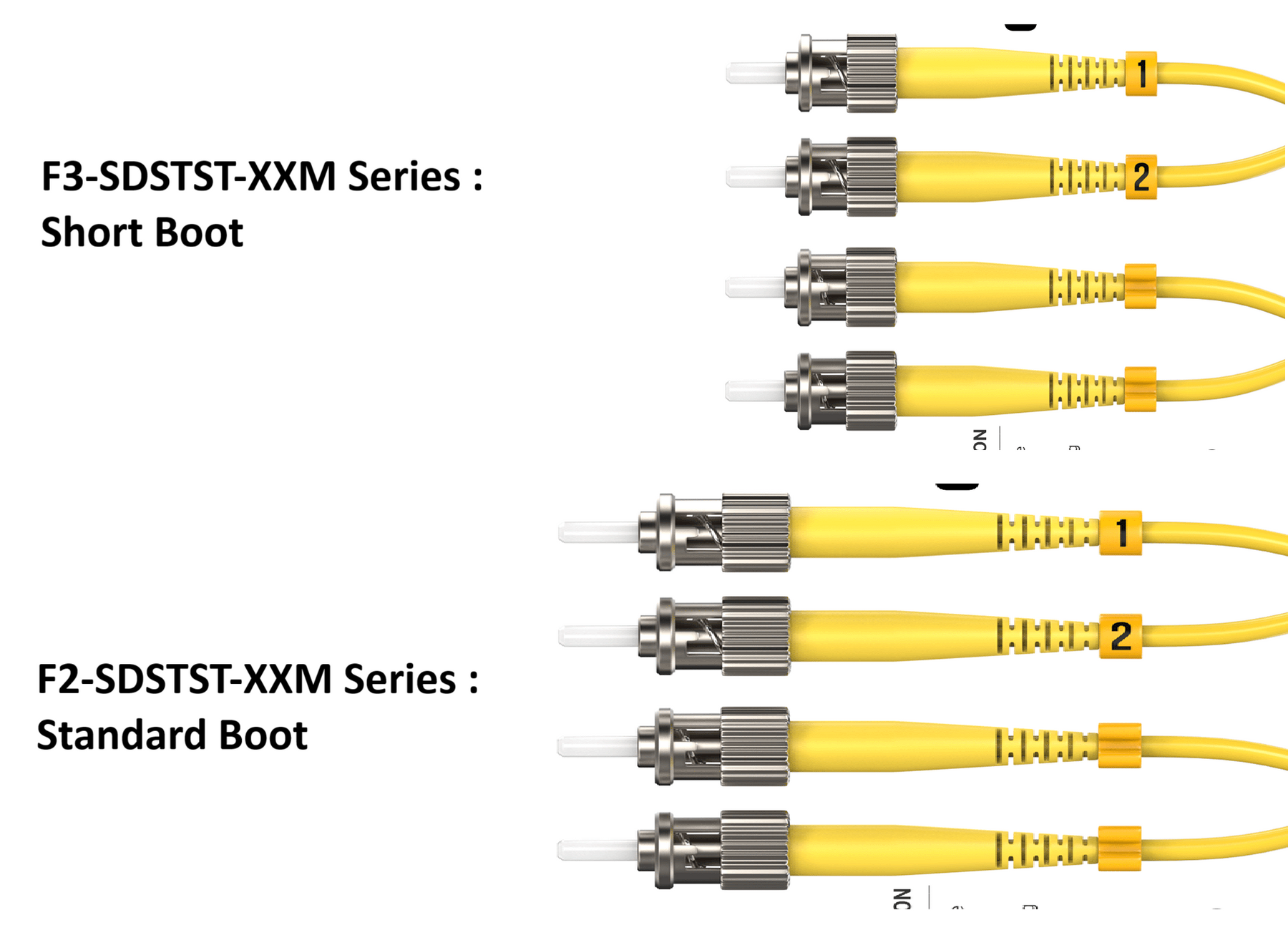

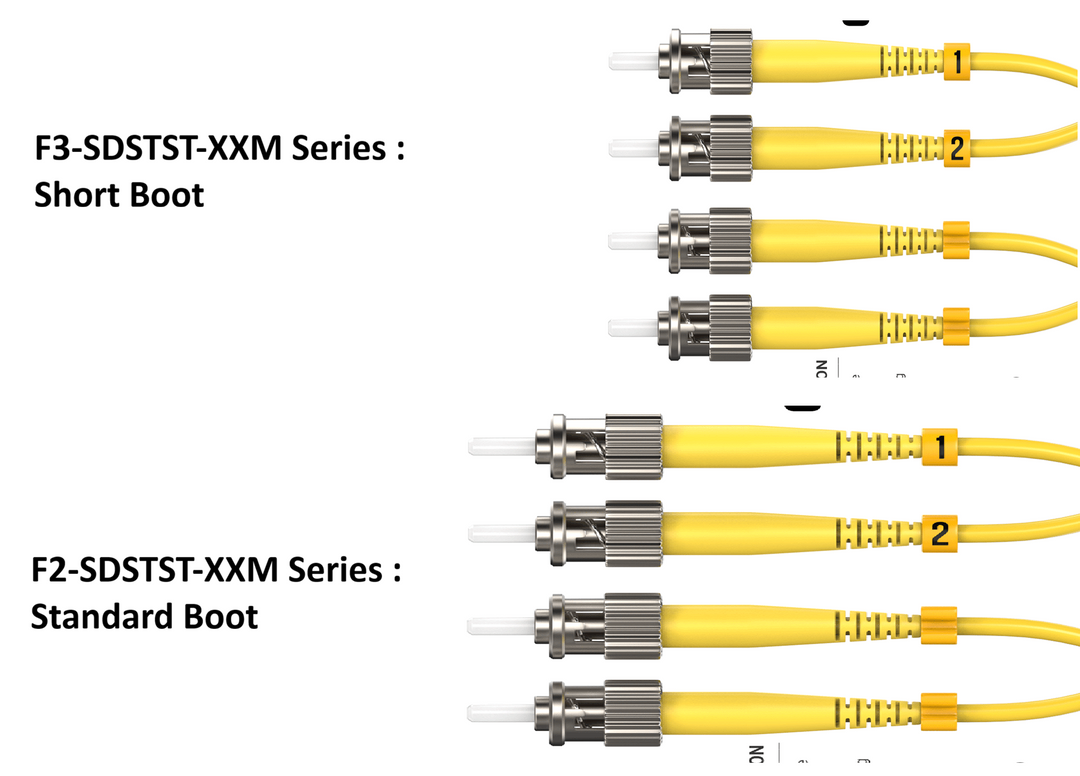

CompuCablePlusUSA.com Short Boot ST to ST Single Mode Fiber Optic Cable OS2 Duplex Corning Glass. It shows the difference between short boot and standard boot with different part numbers.

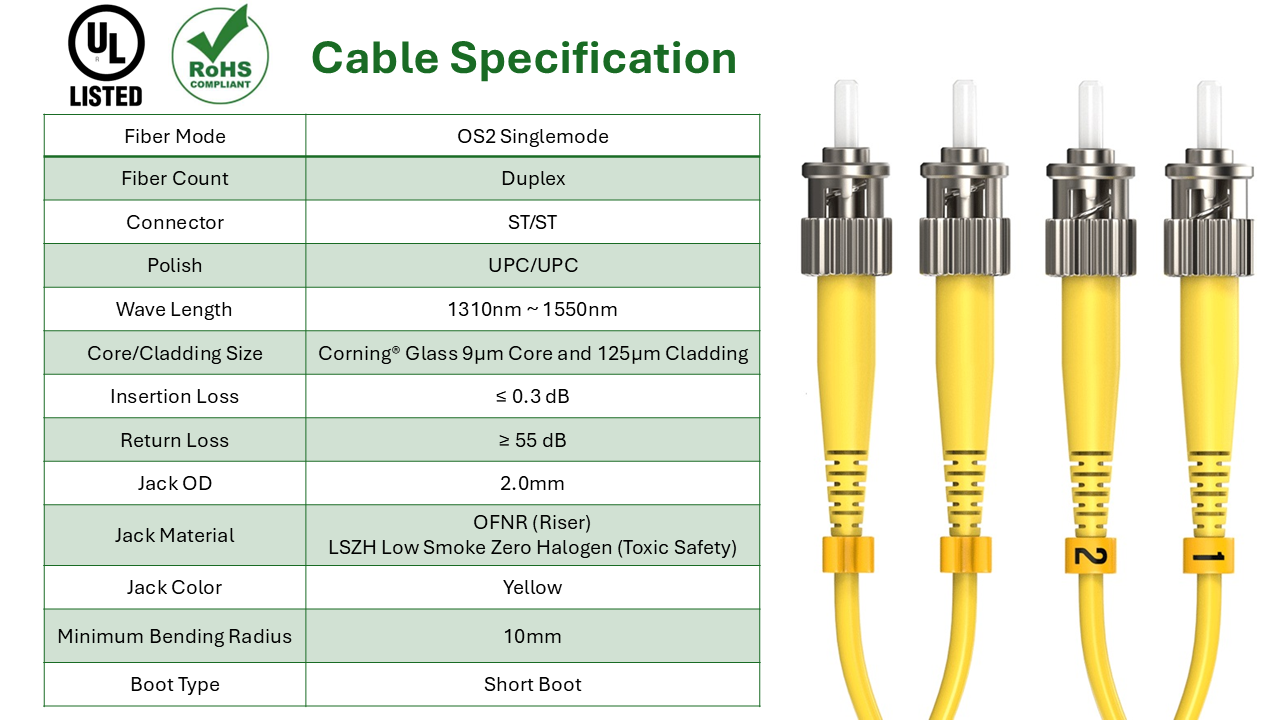

CompuCablePlusUSA.com Short Boot ST to ST Single Mode Fiber Optic Cable OS2 Duplex Corning Glass cable specification.

$15.75

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Length

1 M

2 M

3 M

15 M

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA Short Boot ST to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, 1M

Features

Premium Corning® Glass: Features a 9μm core and 125μm cladding for superior signal transmission and durability.
OS2 Single-Mode Optimized: G657A1 fiber supports long-range applications at 1310nm and 1550nm wavelengths.
Precision ST Connectors: Durable ST to ST duplex interface with UPC polish for high signal integrity.
Dual-Rated Jacket: LSZH (Low Smoke Zero Halogen) and OFNR (Riser) rated for maximum safety in upright building shafts.
Enhanced Flexibility: 2.0mm Jacket OD with a 10mm minimum bending radius for easy routing.

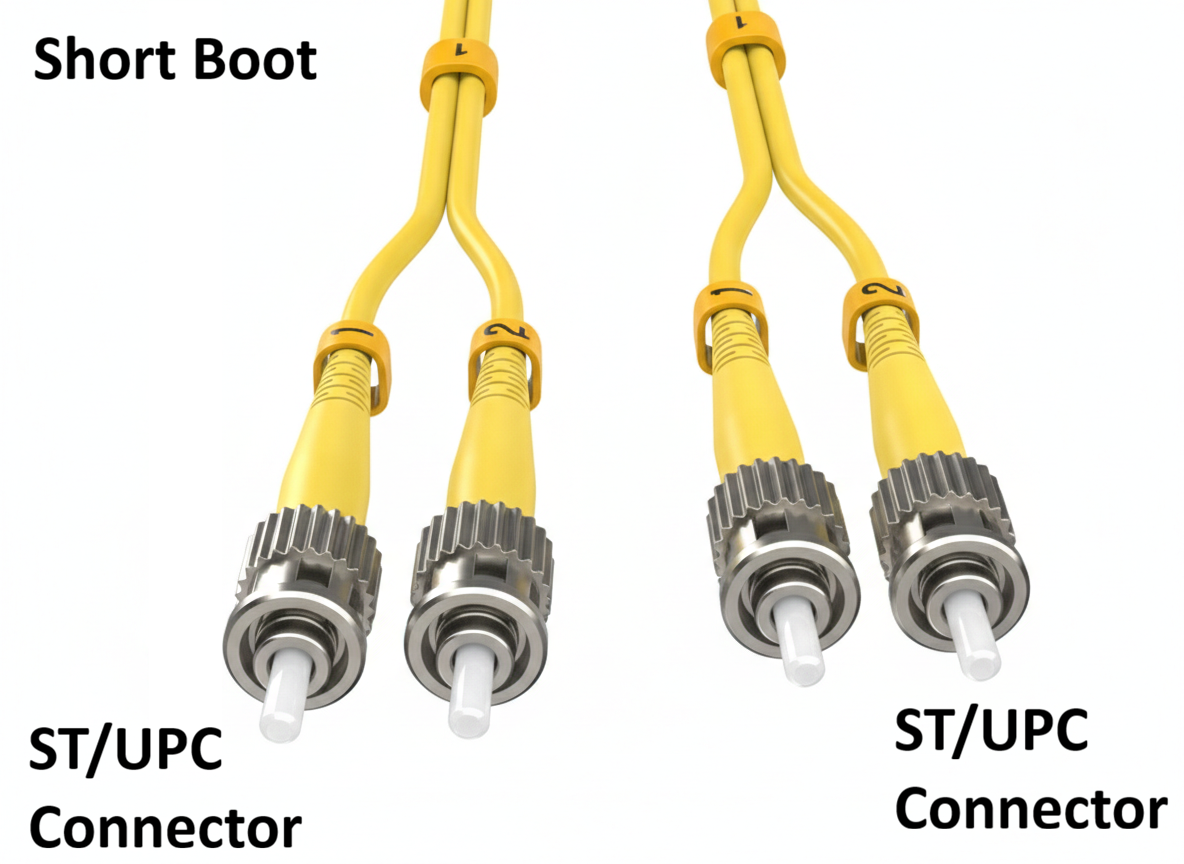

High-Density Short Boot: Specialized boot type reduces curve loss and fits perfectly in shallow enclosures.
Exceptional Performance: Low insertion loss (≤ 0.3 dB) and high return loss (≥ 55 dB) for error-free data.
Certified Quality: UL Listed and RoHS compliant; includes a custom test report in every package.
Length: 1 Meter.

Product Description

Experience uncompromising network stability with our ST to ST Duplex Single-Mode Fiber Optic Cable. Engineered for high-speed data transmission, this cable utilizes genuine Corning® glass to ensure peak performance for Fast Ethernet, Gigabit Ethernet, and demanding workstation applications. Whether you are connecting high-speed switches or backbone servers, this cable provides the high-bandwidth capabilities required for modern enterprise environments.

Designed for longevity and efficiency, the short boot design is a game-changer for high-density racks. By minimizing the bend depth at the connector, it reduces macro-bend loss and prevents cable strain in tight spaces. With a dual LSZH and OFNR (Riser) rating, this cable is safety-certified for vertical shafts and between-floor runs, offering a versatile solution that meets strict building codes without sacrificing signal integrity.

Precision is at the heart of our manufacturing. Each duplex strand features a UPC (Ultra Physical Contact) polish, delivering an impressive return loss of ≥ 55 dB and ultra-low insertion loss. This ensures your data travels further with less degradation, making it the ideal solution for long-range networking. Every cable includes a dedicated test report, giving you the confidence that your infrastructure is built on verified, professional-grade hardware.

Part No F3-SDSTST-01M

UPC 618504196892
