Name: CompuCablePlusUSA LC to SC OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F2-SDLCSC-01M
Price: 12.0 USD
Availability: InStock

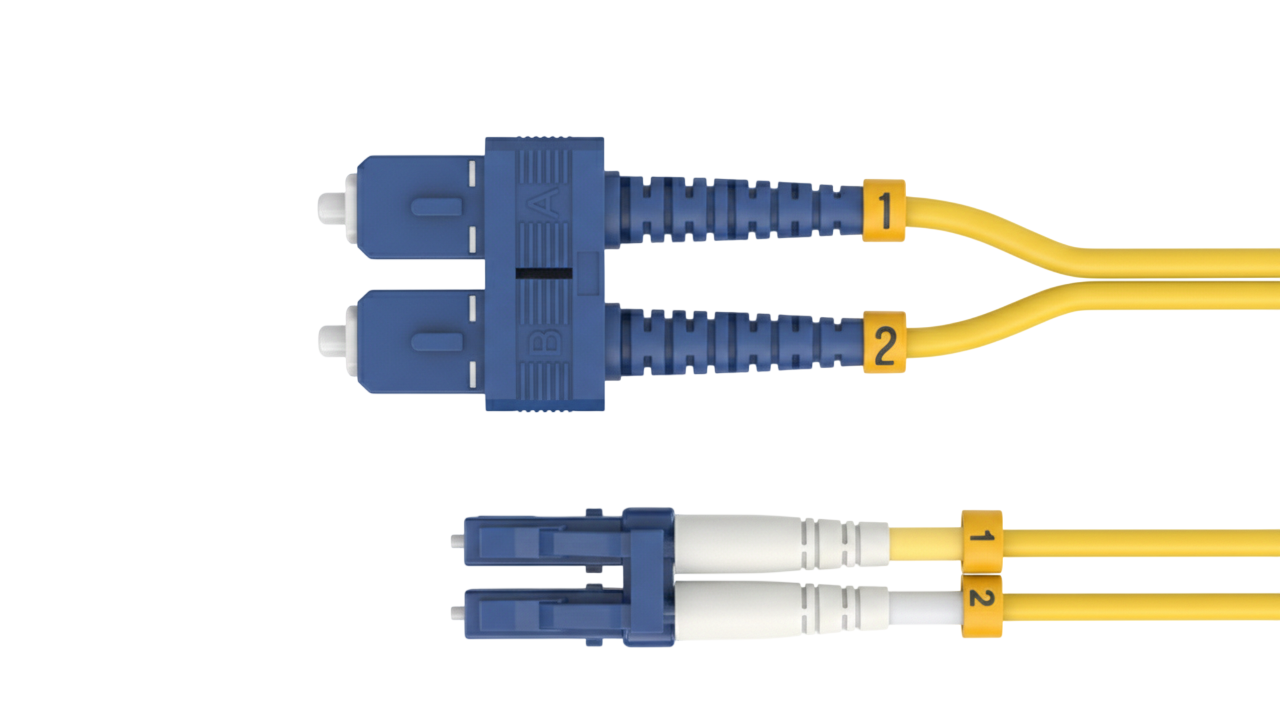

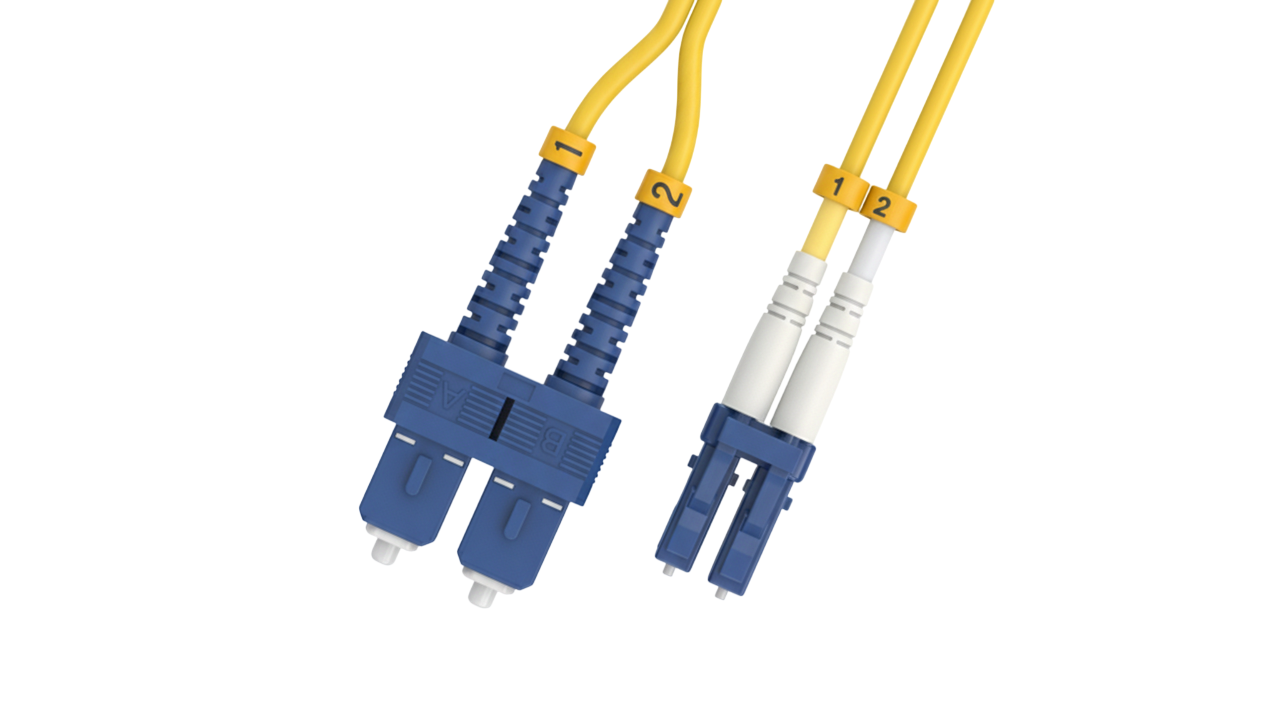

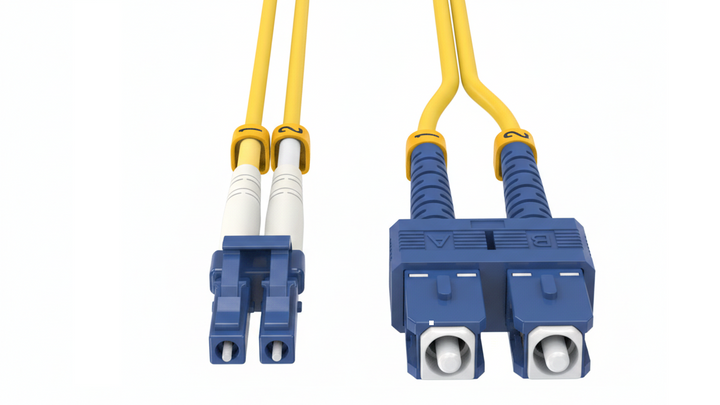

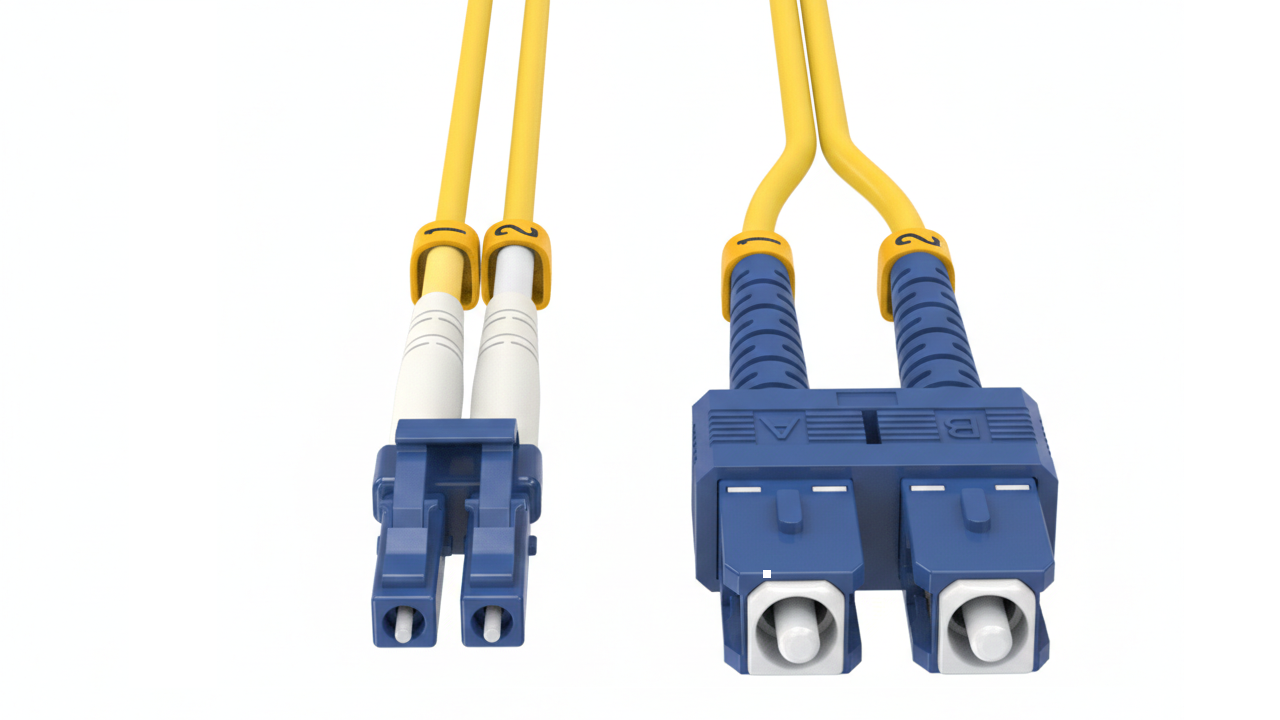

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to SC.

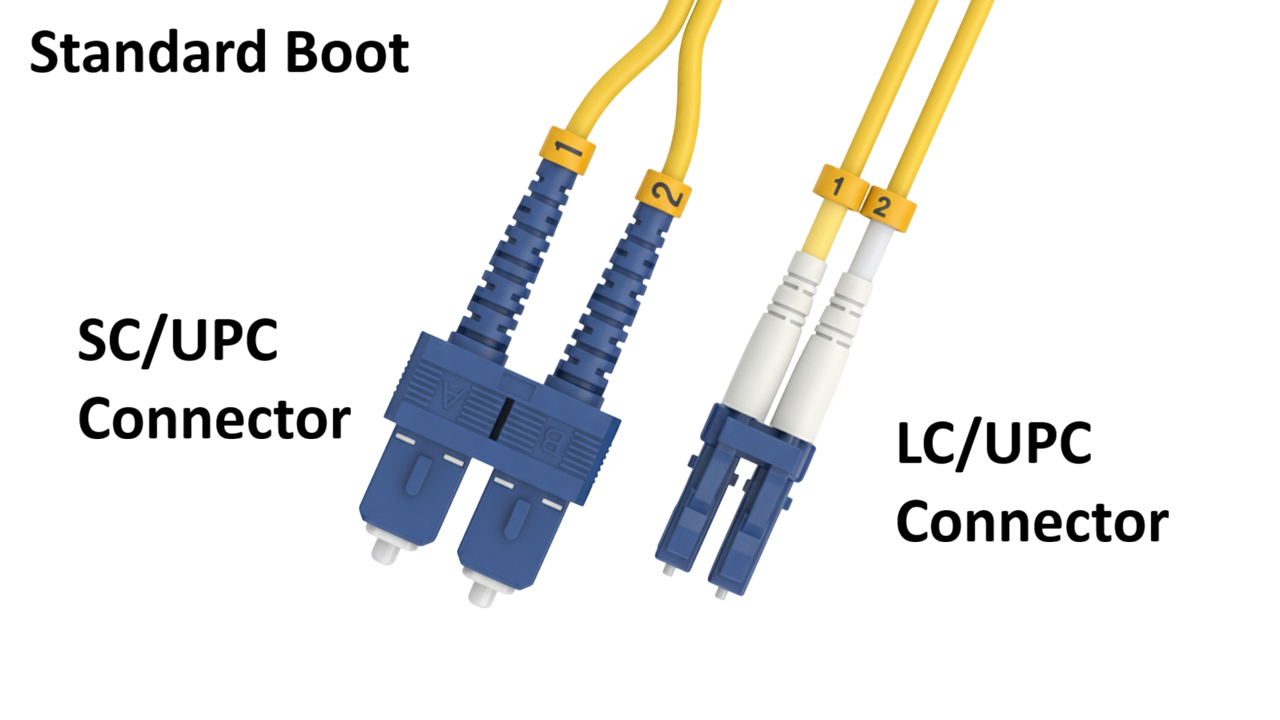

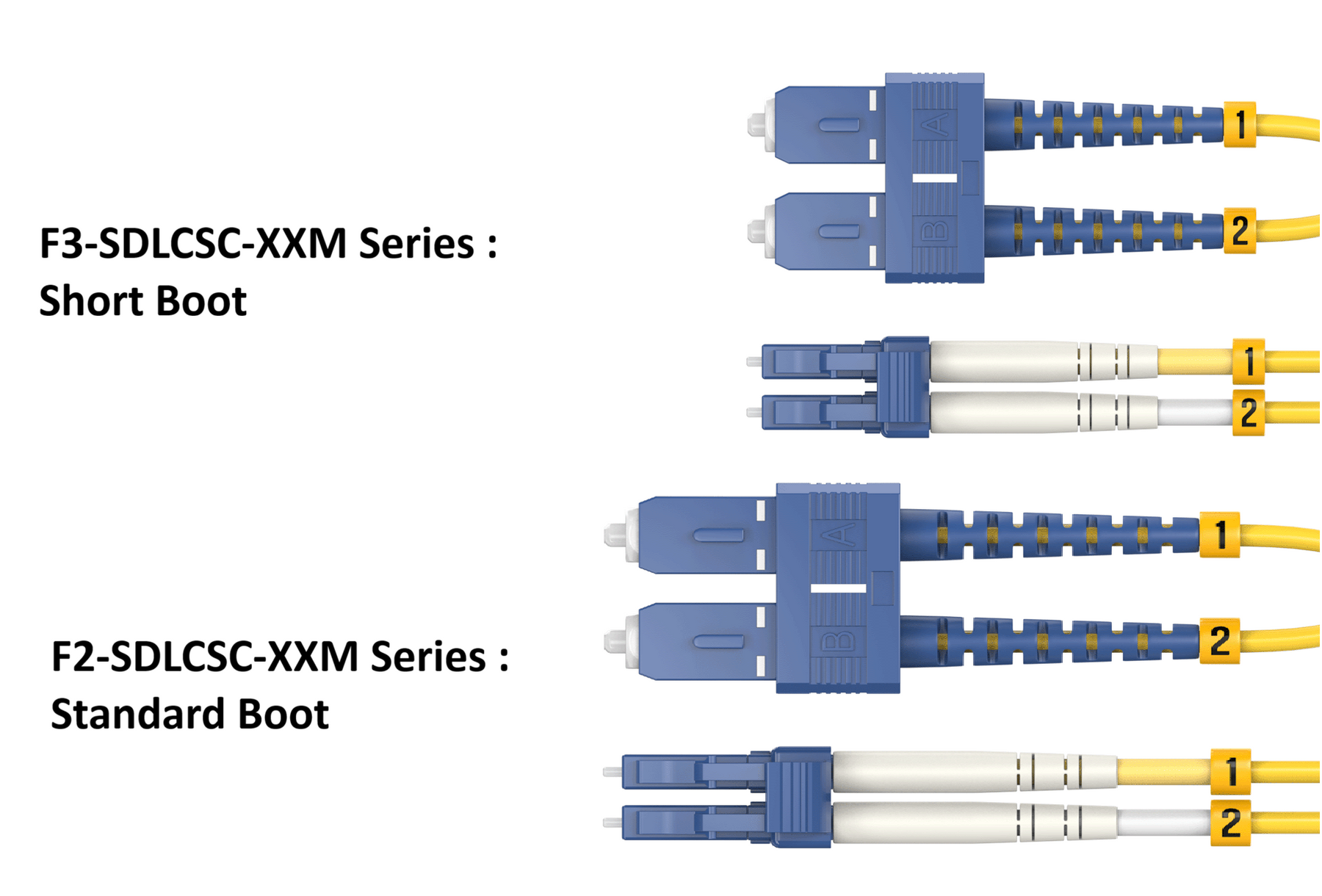

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to SC. Short Boot and Standard Boot difference and Part Numbers.

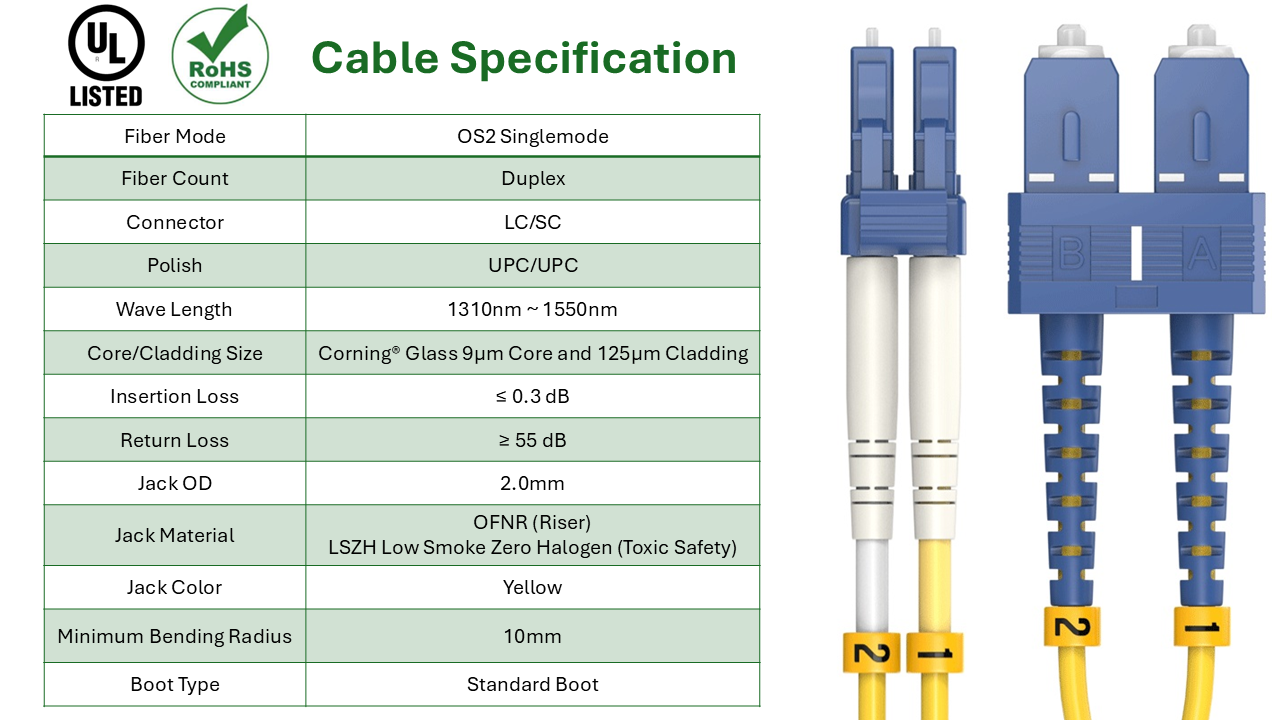

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to SC cable specification.

$12.00

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA LC to SC OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot, 1M

Features

Single-Mode Performance: Optimized for long-range networking and high-bandwidth applications across 1310nm to 1550nm wavelengths.
Precision Connectors: LC to SC Duplex interface with UPC polish, ensuring an insertion loss of ≤ 0.3 dB and return loss of ≥ 55 dB.
Premium Corning® Glass: High-quality 9µm core and 125µm cladding for superior signal clarity and minimal attenuation.
Riser Rated Safety: OFNR and LSZH jacket material ensures compliance with building safety codes for upright shafts.
Reliable Build: 2.0mm Yellow Jacket OD with a 10mm minimum bending radius for flexible routing in tight spaces.
Versatile Options: Available in multiple lengths with a standard boot type to fit any network configuration.
Certified Quality: UL Listed and RoHS compliant to meet the highest industry standards for performance and safety.
Length: 1 Meter

Product Description

Experience uncompromising data integrity with our professional-grade LC to SC Duplex OS2 Single-Mode Fiber Optic Cable. Engineered for high-performance networking, this cable features authentic Corning® 9/125µm glass cores, ensuring peak transmission efficiency for Fast Ethernet, Gigabit Ethernet, and long-haul data applications. Whether you are connecting switches in a high-density data center or linking remote office branches, this cable provides the stability required for mission-critical infrastructure.

Built to withstand demanding environments, our fiber patch cords feature a robust OFNR (Riser) rated jacket and Low Smoke Zero Halogen (LSZH) safety compliance, making them ideal for vertical shafts and between-floor installations. The precision-engineered UPC-polished LC and SC connectors offer a secure, low-loss connection with a simple push-pull mechanism, reducing downtime and streamlining your network deployment. Invest in a solution that balances elite signal integrity with long-term durability.

Part No F2-SDLCSC-01M

UPC 618504196145
