Name: CompuCablePlusUSA LC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F2-SDLCST-01M
Price: 15.0 USD
Availability: InStock

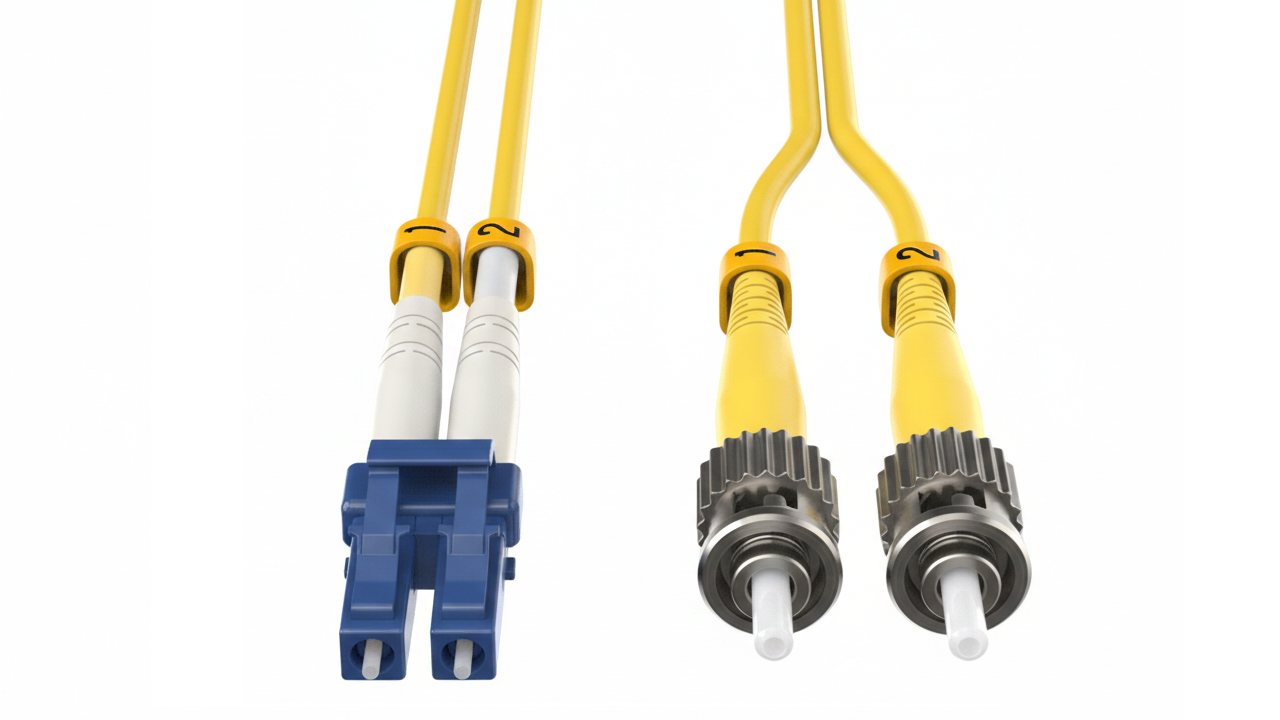

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to ST.

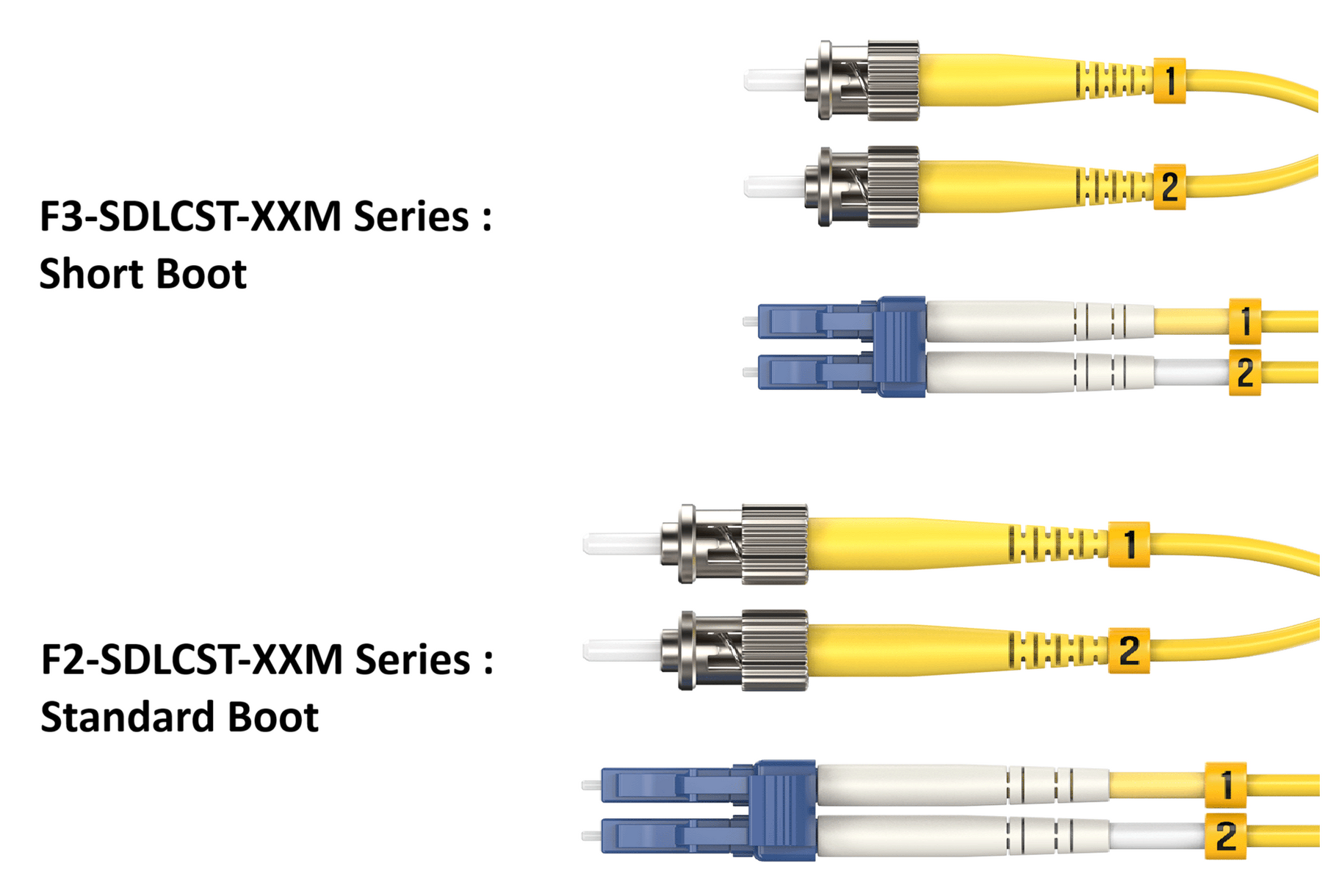

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to ST. It shows the difference of the Short Boot and Standard Boot and different Part Numbers.

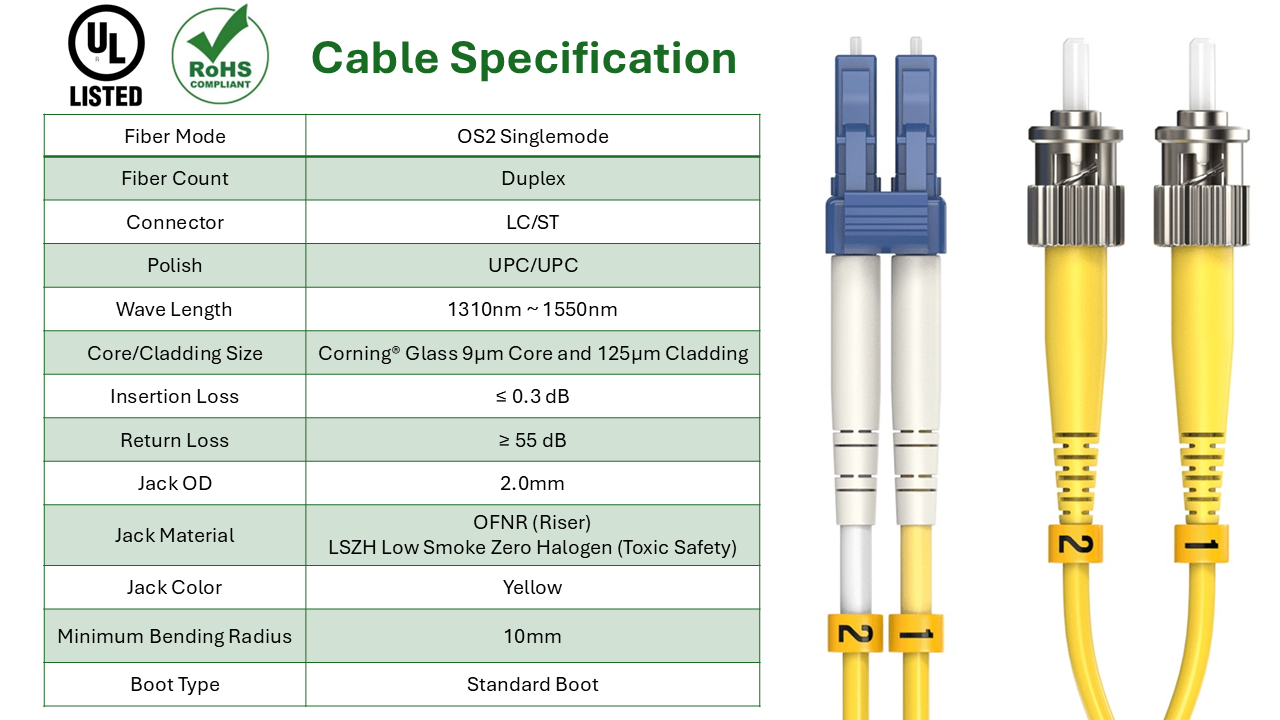

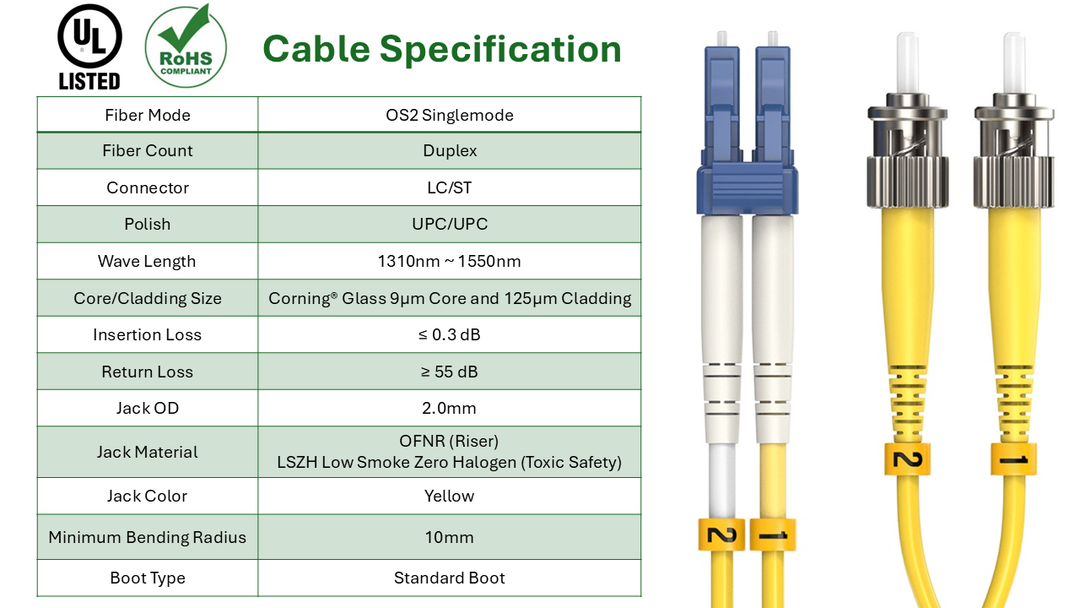

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable LC to ST cable specification.

CompuCablePlusUSA LC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot

$15.00

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA LC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot, 1M

Features

· Premium Corning® Glass Core: Engineered with genuine Corning® 9/125μm glass and a 10mm minimum bend radius, providing a high-purity optical path with enhanced flexibility for tight enclosures.

· High-Speed OS2 Single-Mode Performance: Optimized for long-range networking and high-bandwidth applications across 1310nm to 1550nm wavelengths.

· Dual-Interface Precision Connectors: Features a space-saving LC connector and a secure, bayonet-style ST connector with UPC polishing to maximize signal integrity and minimize back reflection.

Superior Signal Integrity: Ultra-low insertion loss (≤ 0.3 dB) and high return loss (≥ 55 dB) for error-free data transfer.
Safety Rated Jacket: 2.0mm Yellow OFNR (Riser) rated jacket OD.
Versatile Options: Available in multiple lengths with a standard boot type to fit any network configuration.
Certified Quality: UL Listed and RoHS compliant to meet the highest industry standards for performance and safety.
Length: 1 Meter.

Product Description

Experience unparalleled data integrity and long-range connectivity with our LC to ST Duplex Single-Mode Fiber Optic Cable. Engineered for high-performance networking, this cable is the definitive solution for Fast Ethernet, Gigabit Ethernet, and bandwidth-heavy data applications. Whether you are bridging distances across a campus or connecting critical hardware within a data center, the 9/125μm OS2 core ensures minimal signal attenuation and maximum reliability over extended runs.

Designed with the modern IT infrastructure in mind, this cable excels in high-density environments. The compact LC connector saves valuable rack space, while the classic ST connector provides a secure, bayonet-style locking system for stable hardware interfaces. Built with a professional-grade OFNR (Riser) rated jacket, it is specifically optimized for vertical shafts and floor-to-floor installations, meeting strict building safety codes while delivering elite backbone performance.

Each cable is constructed using genuine Corning® glass, ensuring superior refractive consistency and durability. To guarantee out-of-the-box excellence, every unit undergoes rigorous testing for insertion and return loss, with a detailed test report included in every package. Trust in a UL-listed, RoHS-compliant solution that pairs rugged physical construction with the precision required for mission-critical fiber optic networks.

Part No F2-SDLCST-01M

UPC 618504196268
