Name: CompuCablePlusUSA SC to SC OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F2-SDSCSC-01M
Price: 15.0 USD
Availability: InStock

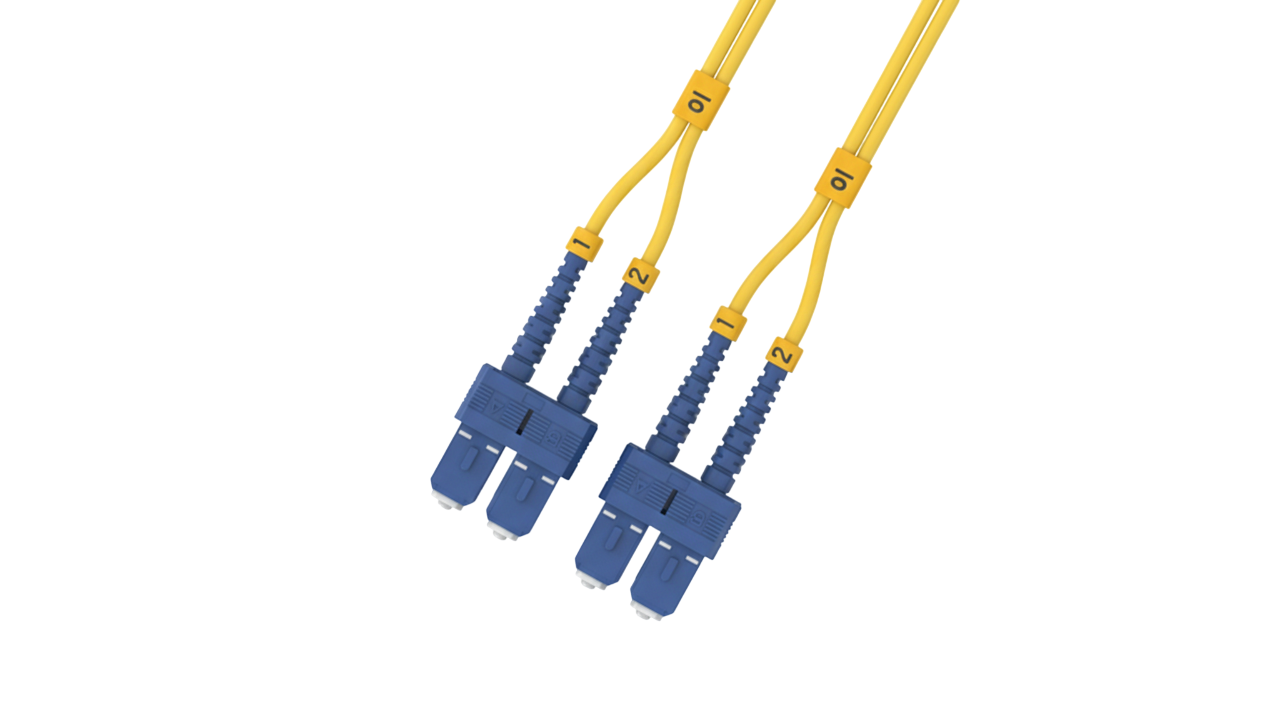

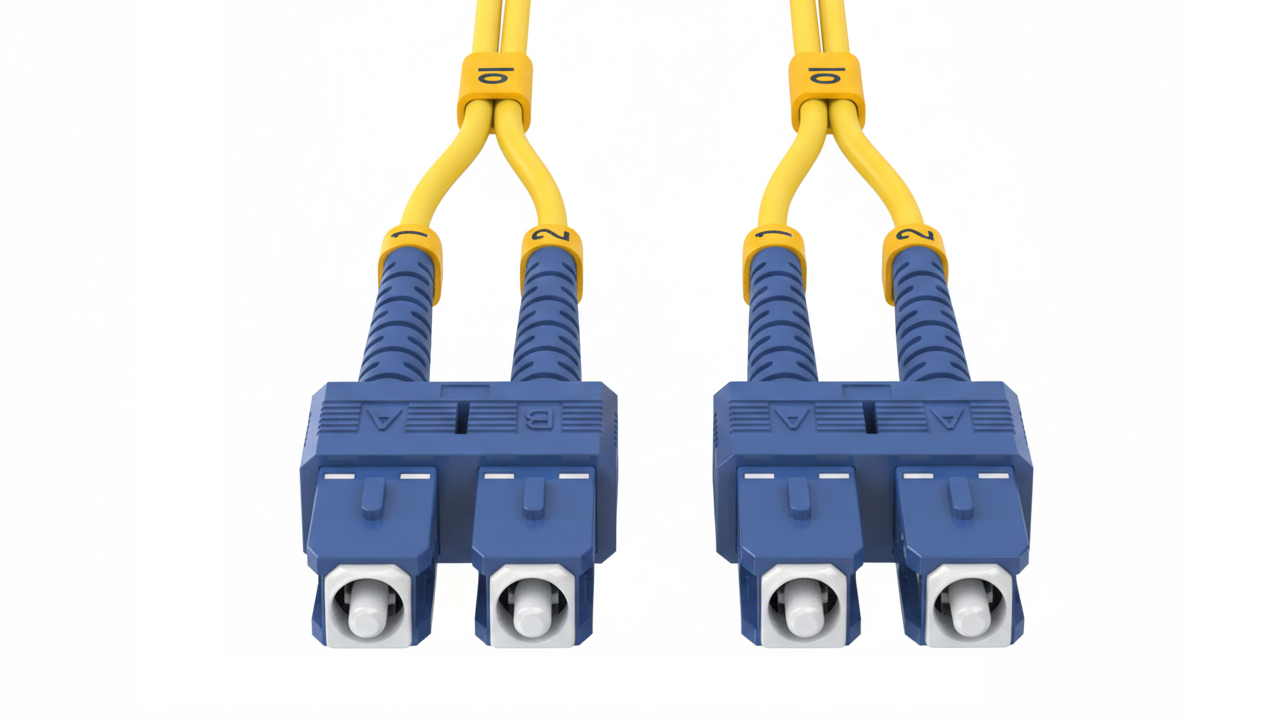

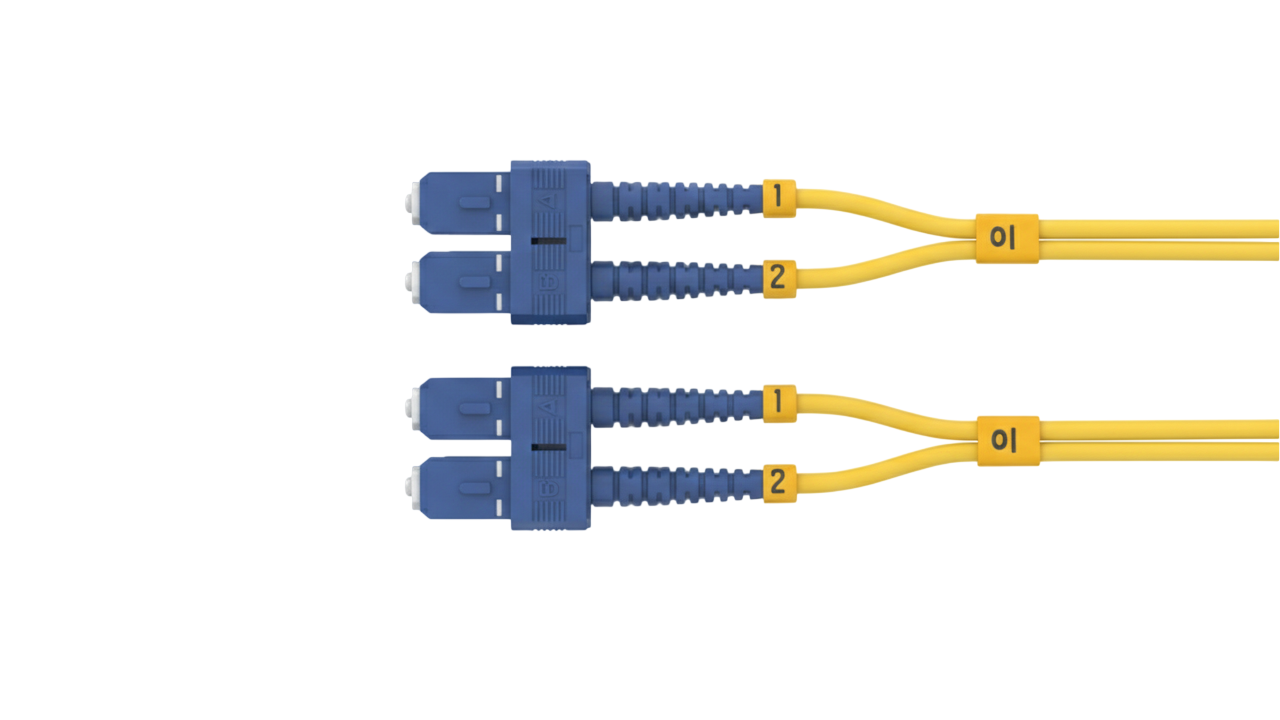

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable SC to SC.

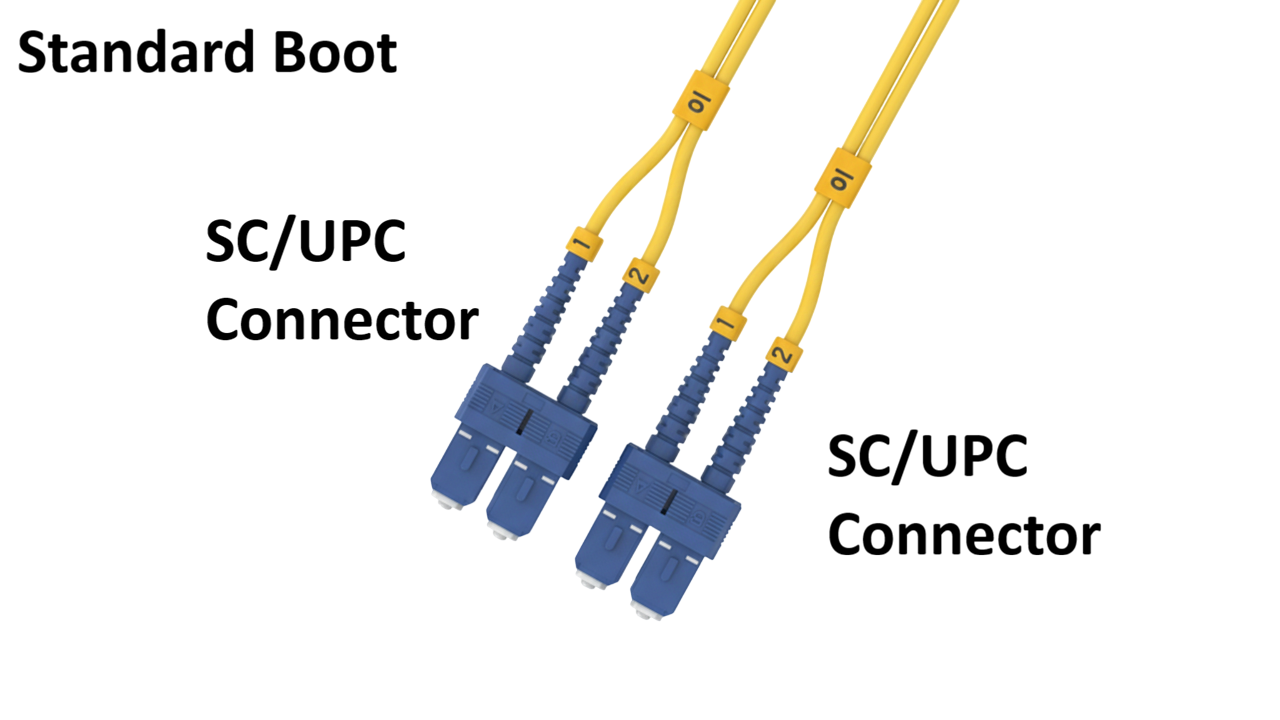

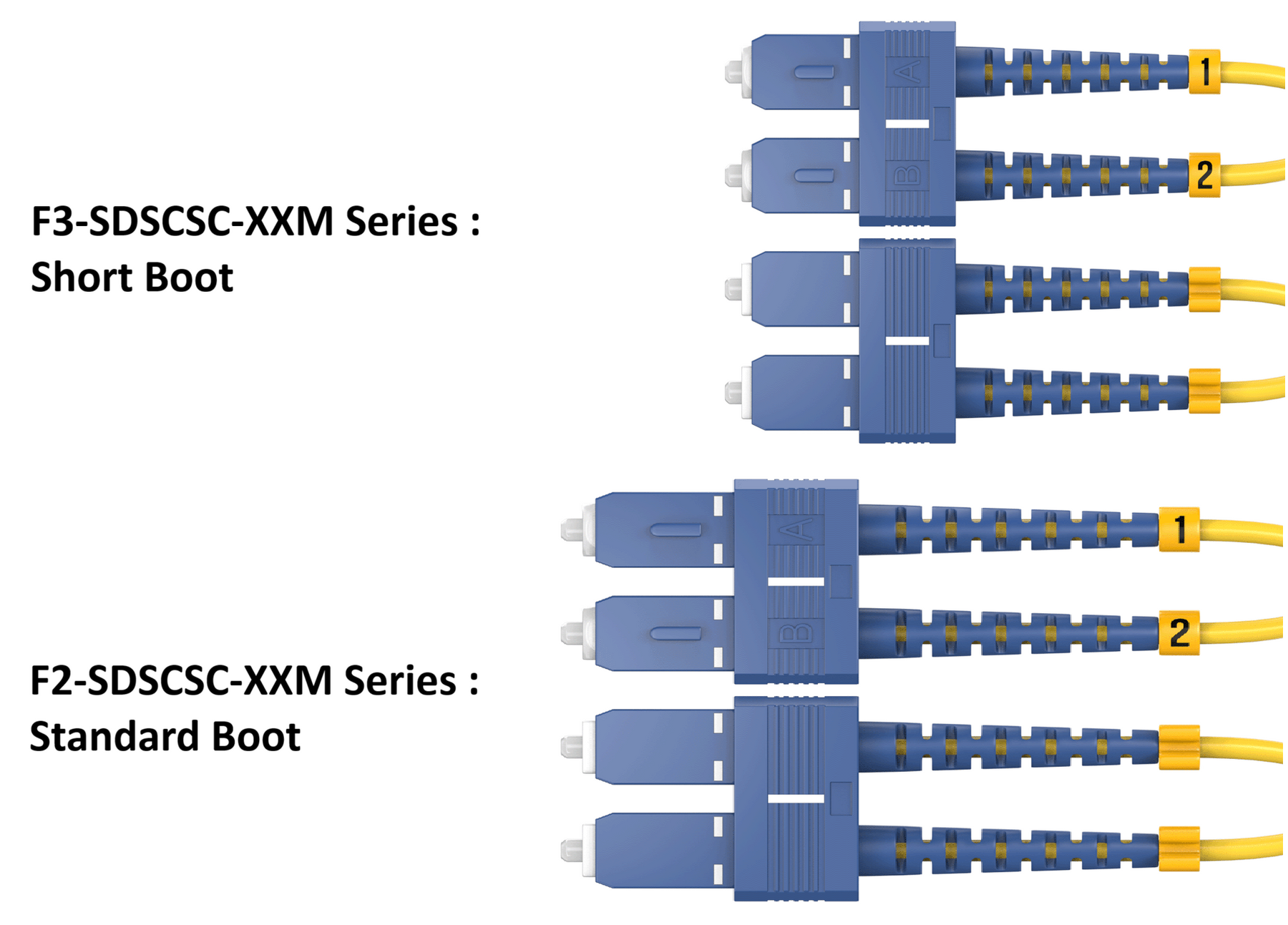

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable SC to SC. Showing the difference between Short Boot and standard Boot.

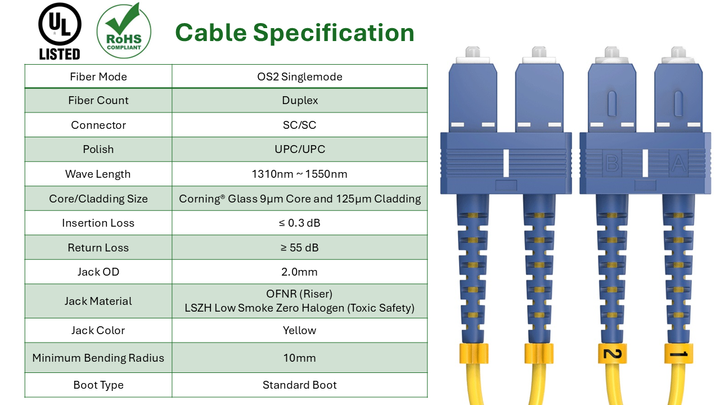

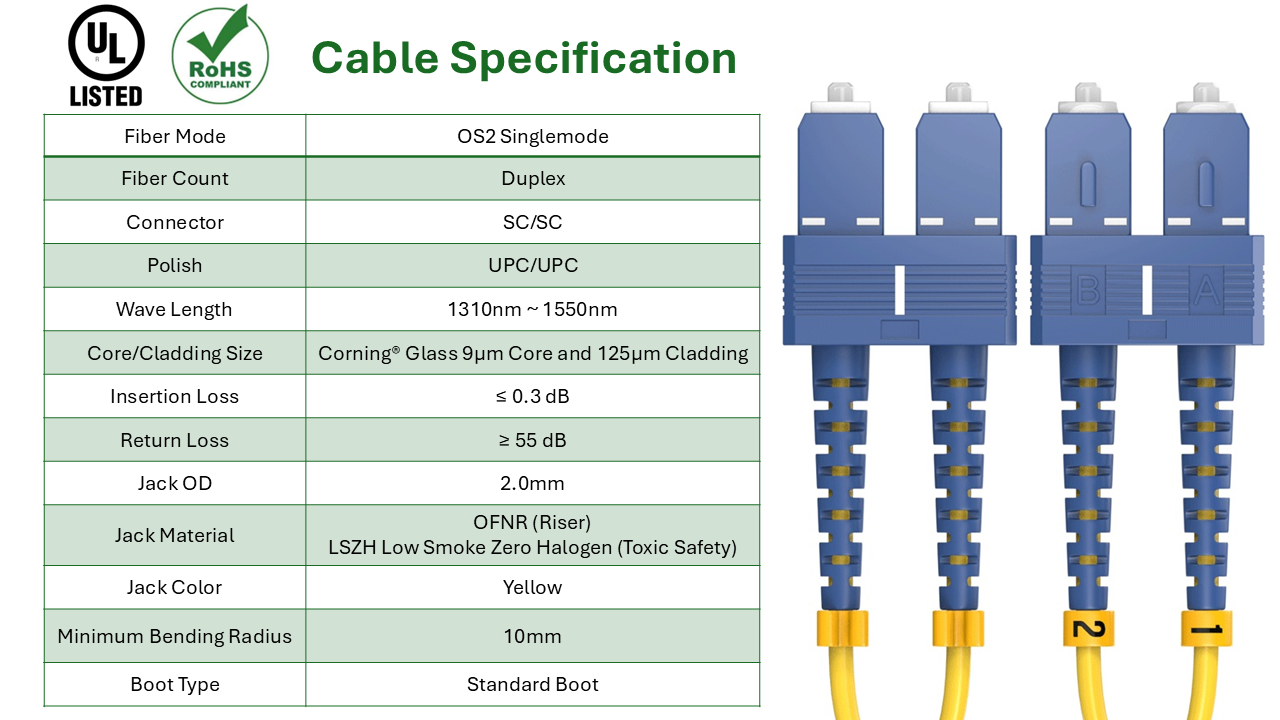

CompuCablePlusUSA.com OS2 Single-Mode Fiber Patch Cable SC to SC cable specification.

$15.00

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA SC to SC OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot, 1M

Features

Premium Corning® Glass: Features a high-quality 9µm core and 125µm cladding for superior light transmission and long-term reliability.
OS2 Single-Mode Performance: Optimized for 1310nm to 1550nm wavelengths, making it the ideal solution for high-speed, long-distance networking.
Secure SC/SC Connectors: Duplex SC to SC interface with a simple push-pull motion for quick installation and ultra-low signal loss.
Superior Signal Integrity: UPC to UPC polish ensures an insertion loss of ≤ 0.3 dB and a return loss of ≥ 55 dB for a cleaner signal.
Reliable Build: 2.0mm Yellow Jacket OD with a 10mm minimum bending radius for flexible routing in tight spaces.
Versatile Options: Available in multiple lengths with a standard boot type to fit any network configuration.
Certified Quality: UL Listed and RoHS compliant to meet the highest industry standards for performance and safety.
Length: 1 Meter.

Product Description

Experience uncompromised data integrity and lightning-fast connectivity with our premium SC to SC Duplex Single-Mode Fiber Optic Cable. Engineered for high-performance networking, this OS2-rated cable is the definitive solution for Fast Ethernet, Gigabit Ethernet, and other data applications. Whether you are connecting switches in a high-density data center or bridge long-range network segments, our fiber ensures a stable, low-latency connection every time.

Built with industry-leading Corning® Glass, this cable is designed for maximum durability and signal clarity. The precision-engineered SC connectors feature a simple push-pull motion, allowing for rapid installation and secure seating in crowded patch panels. What sets this cable apart is its 10mm minimum bending radius, a critical feature for high-density environments, allowing for flexible routing in tight spaces without risking signal degradation.

Safety and compliance are at the core of our design. Wrapped in a vibrant yellow OFNR (Riser) rated jacket, this cable is specifically optimized for use in upright shafts that run between floors. With its slim 2.0mm outer diameter and LSZH (Low Smoke Zero Halogen) properties, it provides the perfect balance of flexibility and toxic safety for modern building infrastructure. Each cable is factory-tested and includes a test report in the package to ensure professional-grade reliability.

Part No F2-SDSCSC-01M

UPC 618504196312
