Name: CompuCablePlusUSA SC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F2-SDSCST-01M
Price: 15.75 USD
Availability: InStock

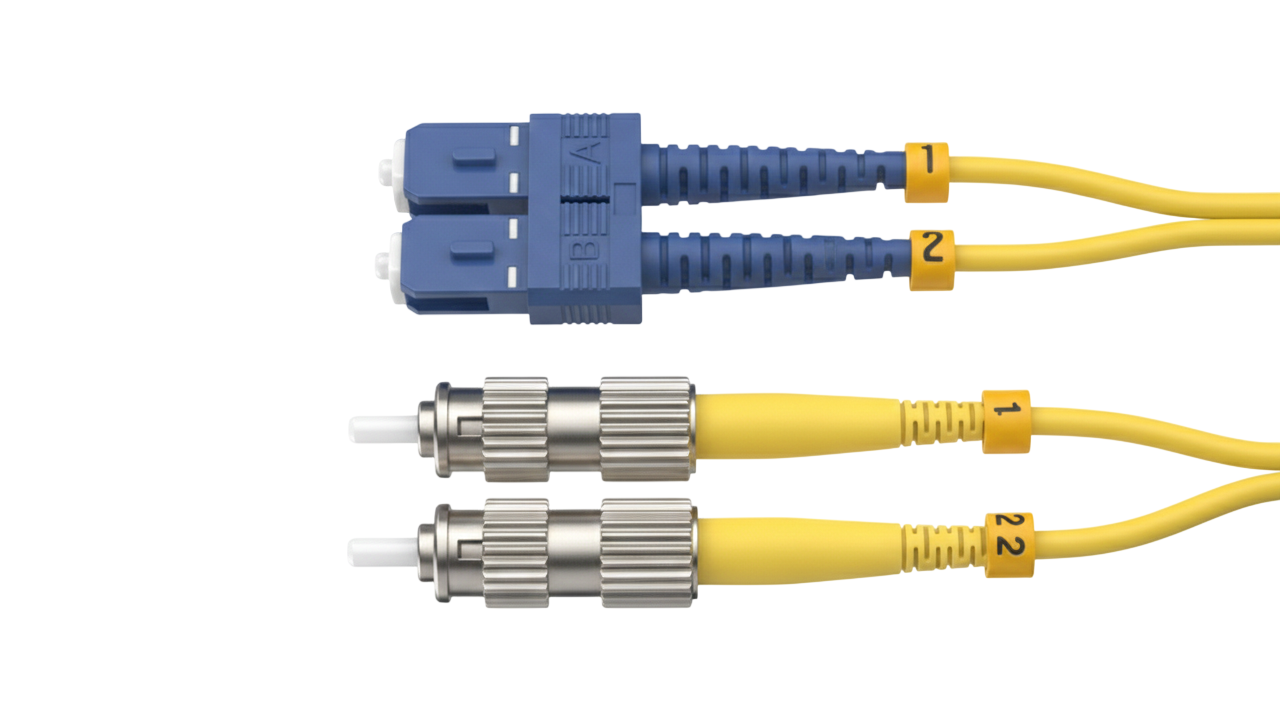

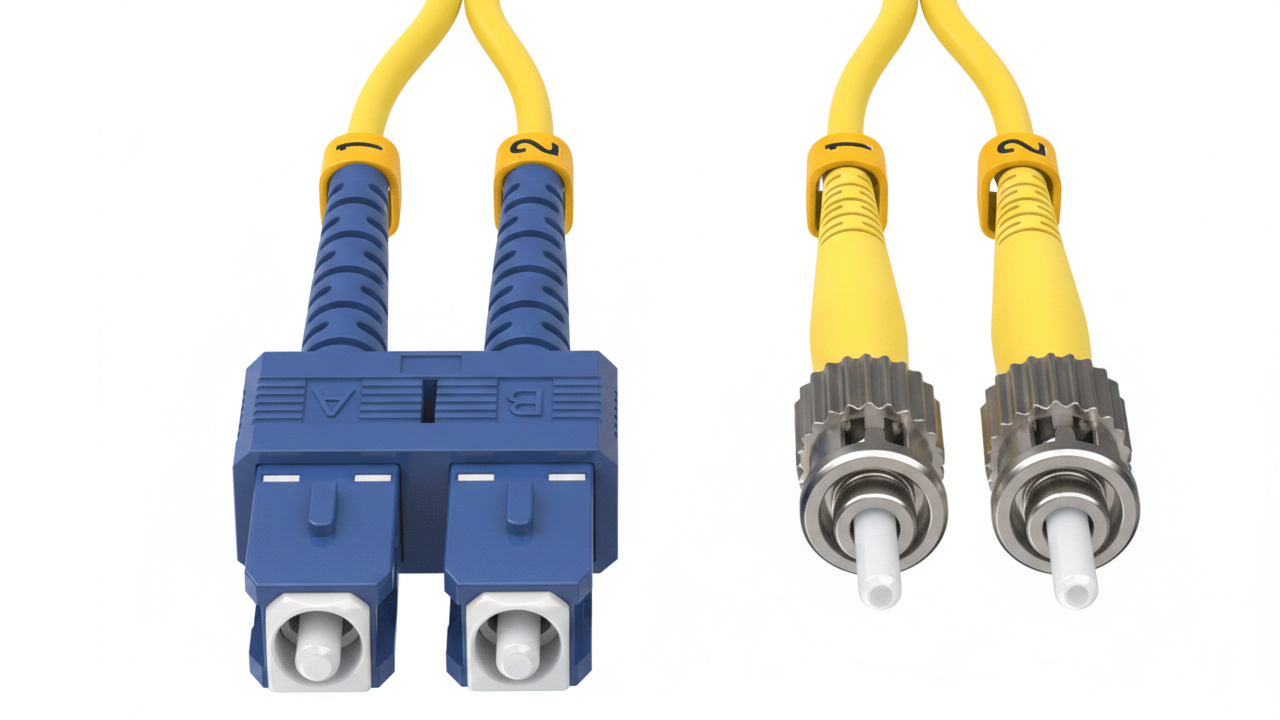

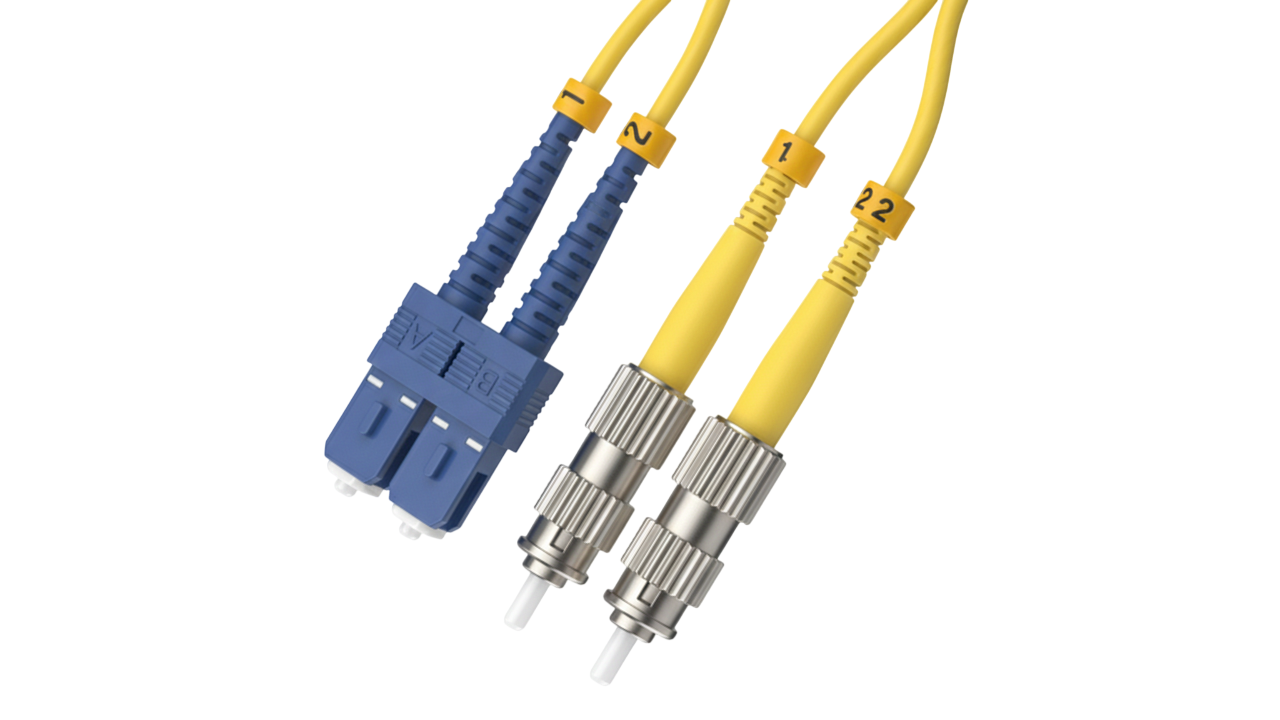

CompuCablePlusUSA.com SC to ST Single Mode Fiber Optic Cable - Duplex OS2 9/125 Corning.

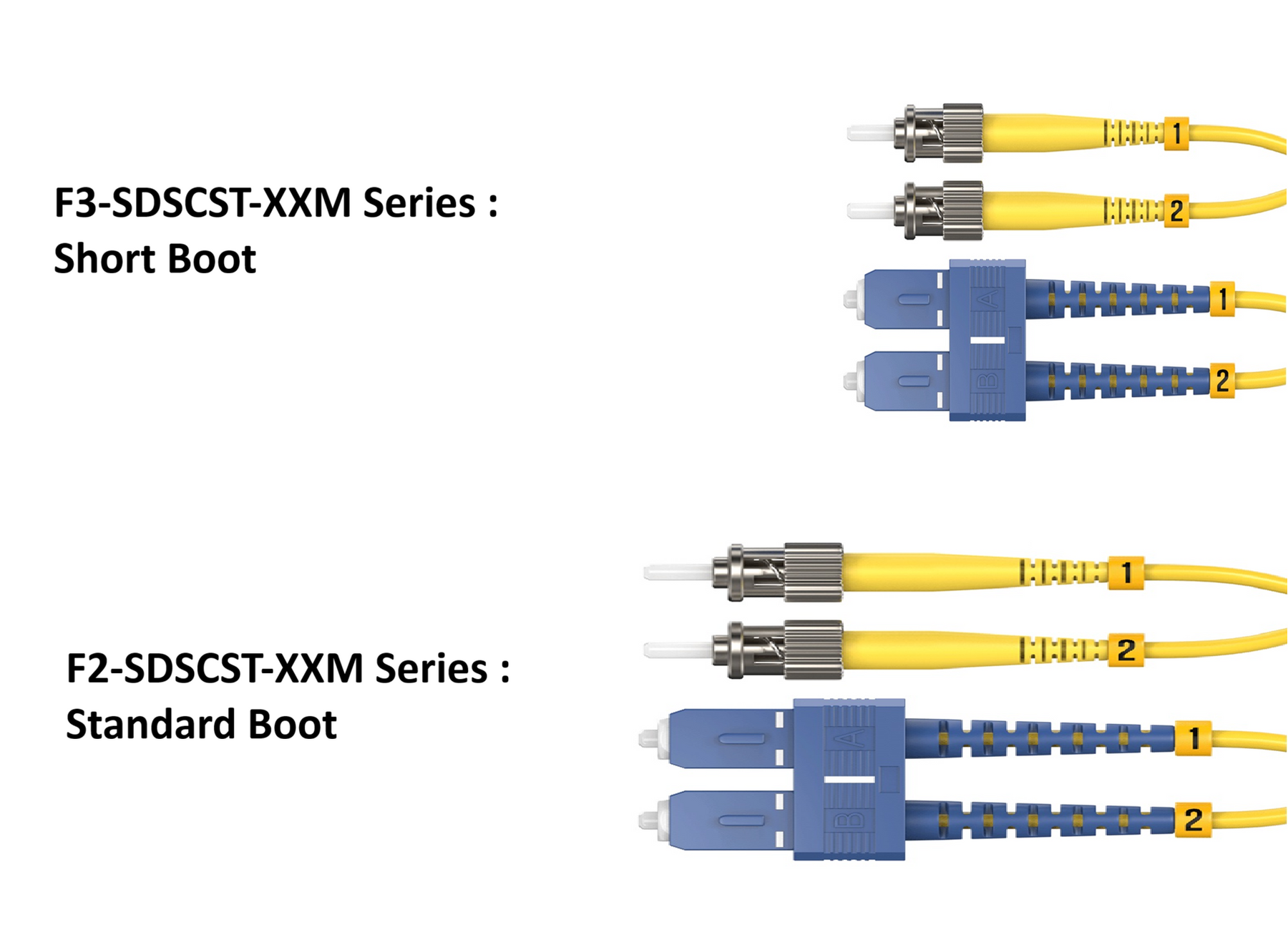

CompuCablePlusUSA.com SC to ST Single Mode Fiber Optic Cable - Duplex OS2 9/125 Corning. It shows the difference of the Short Boot and Standard Boot with difference part numbers.

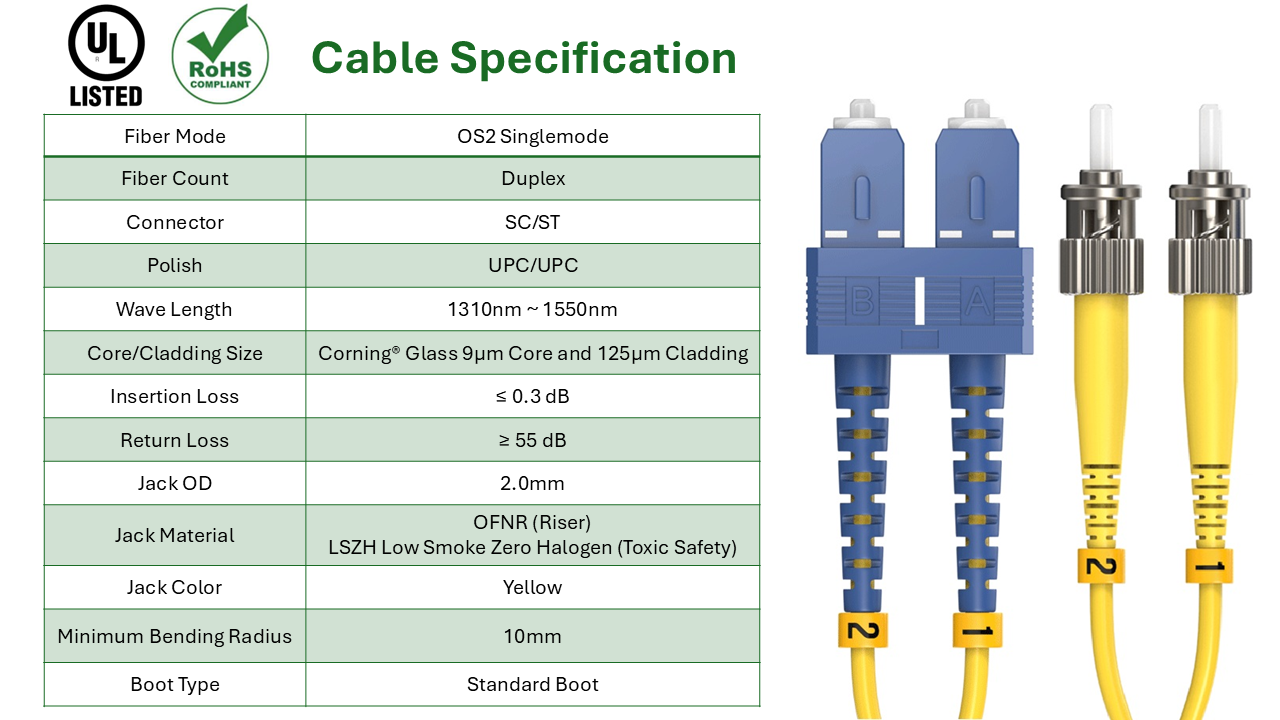

CompuCablePlusUSA.com SC to ST Single Mode Fiber Optic Cable - Duplex OS2 9/125 Corning Cable Specification.

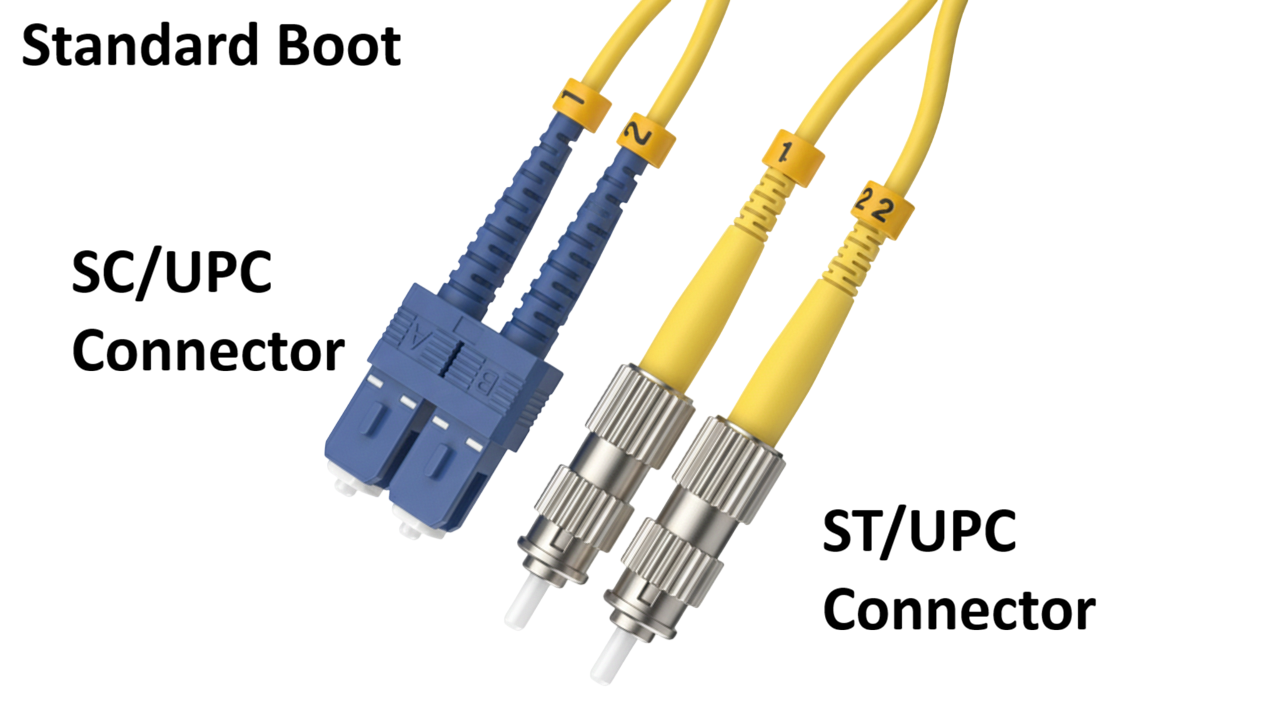

CompuCablePlusUSA.com SC to ST Single Mode Fiber Optic Cable - Duplex OS2 9/125 Corning standard boot.

$15.75

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Lead Time : Ships in 5 business days. Our fulfillment team operates Monday through Thursday.

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA SC to ST OS2 Single-Mode Fiber Patch Cable – Duplex UPC 9/125μm Corning Glass, OFNR Riser, Yellow, Standard Boot, 1M

Features

· Premium Corning® Glass: 9μm core and 125μm cladding for maximum durability and low attenuation.

· OS2 Single-Mode Performance: Optimized for long-range data transmission at 1310nm to 1550nm wavelengths.

· High-Density Flexibility: Features a 10mm minimum bending radius, ideal for tight cable management and complex routing.

· Hybrid Connectivity: SC push-pull and ST bayonet-style connectors for secure, versatile hardware interfacing.

· Superior Signal Integrity: Ultra Physical Contact (UPC) polish ensures low insertion loss (≤ 0.3 dB) and high return loss (≥ 55 dB).

· Durable Design: Equipped with a Standard Boot for reliable strain relief and a 2.0mm OD yellow jacket.

· Safety & Compliance: OFNR (Riser) and LSZH (Toxic Safety) rated; UL listed and RoHS compliant for guaranteed safety.

· Length: 1 Meter.

Product Description

Experience lightning-fast data transmission and rock-solid reliability with our SC to ST OS2 Duplex Single-Mode Fiber Optic Cable. Designed for high-performance networking, this cable features a premium Corning® 9/125μm glass core, ensuring minimal signal loss over long distances. Its ultra-flexible 10mm minimum bending radius makes it the perfect OS2 solution for high-density environments, allowing for tight routing in crowded server racks without compromising signal integrity.

Built to withstand demanding environments, the OFNR (Riser) rated jacket is specifically engineered for vertical shafts, providing essential fire safety for between-floor installations. Each cable is finished with a Standard Boot for robust strain relief and precision-polished (UPC to UPC) to achieve a return loss of ≥ 55 dB. Whether you're upgrading a data center or connecting floors, this OS2-rated cable delivers the high-density suitability and bandwidth needed for modern Gigabit Ethernet applications.

Part No F2-SDSCST-01M

UPC 618504196466
