CompuCablePlusUSA Ethernet RJ45 to RS-422/RS-485 Industrial Ethernet Converter Adapter Modbus RTU TCP UDP HTTP HTTPS RS422 RS485 Serial Device Gateway, DB9 Male with F/F Gender Changer, Mini USB, 5-40 VDC Power Input, DCE DTE Toggle Switch
Features
- Universal Serial Connectivity Kit: Includes a D-Sub DB9 Mini Gender Changer (Female-to-Female) coupler adapter to instantly match any host cable connection, maximize device compatibility, and save you the added time and cost of purchasing a separate adapter hardware set.
- Multi-Protocol Converter Gateway: Fully compatible with Modbus RTU, TCP Client/Server, UDP Client/Server, Http Client, Https Client, and extended Cloud platform integrations.
- Dual Physical Interface Options: Built with a standardized DB9 Male serial port on one end and a robust RJ45 Ethernet port on the other for reliable hardware bridging.
- Integrated Hardware Security Suite: Employs advanced built-in WEP and WPA/WPA2 hardware encryption to securely protect data transmissions throughout the network.
- Smart Master/Client Distribution: Supports a 1 TCP Server to 4 TCP Clients Broadcast topology, forcing each independent client to unicast its response to the server.
- Harsh Industrial Resilience: Ruggedly built component with a massive operational temperature flexibility rating of -40ºC to 85ºC.
- Configurable Serial Transmission Ports: Features a wide baud rate parameter of 1,200~921,600 bps, data bit variables (5, 6, 7, 8), stop bits (1, 1.5, 2), and parities (None, Even, Odd).
- On-Board Physical Controls: Equipped with an active DCE / DTE communication toggle, a physical Reset switch, a dedicated On/Off power slider, and a Mini USB programming port.
- Flexible Operating Voltage Input: Runs reliably using an industrial 5~40 VDC power input terminal, utilizing dual Red (Status) and Blue (Link) monitoring LEDs.
- Compact Integration Form Factor: Ultra-small design measuring 81.6 mm (L) x 31.75 mm (W) x 20 mm (H) for seamless integration inside panels or machinery.
- Diverse Field Infrastructure Applications: Optimized for Home Automation, Health and wellness monitoring, Smart Building, Smart Agriculture, Industrial automation, and Cloud networks.

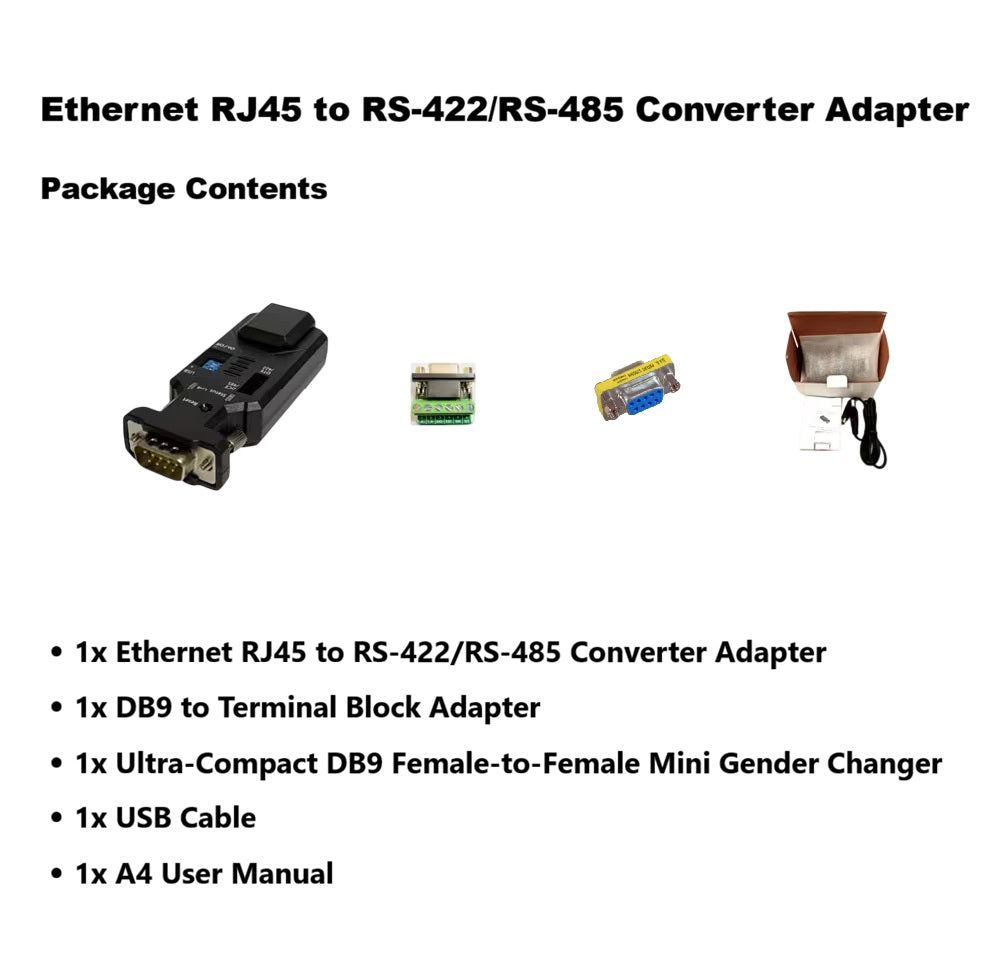

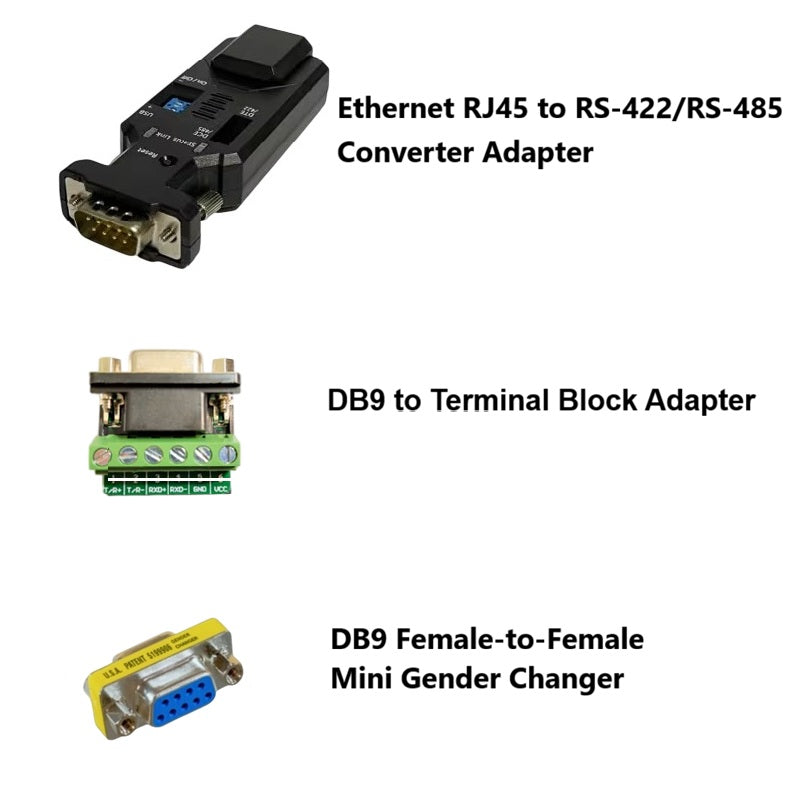

- Complete Out-of-the-Box Setup Kit: Includes 1x CompuCablePlusUSA Industrial Gateway Unit, 1x DB9 to Terminal Block Adapter for easy field wiring, 1x Ultra-Compact DB9 Female-to-Female Mini Gender Changer for instant cable matching, 1x USB Configuration Cable, and 1x A4 User Manual—all packed cleanly in a protective box so you have everything needed for immediate setup without extra hardware store trips.
Product Description
The CompuCablePlusUSA industrial-grade Ethernet to RS-422/485 converter adapter provides robust protocol conversion for complex, modern networking environments. Engineered as a high-performance serial gateway, it establishes seamless communication across Modbus RTU, TCP Client/Server, UDP Client/Server, Http, and Https architectures. Built to thrive under harsh operational conditions, this rugged hardware operates reliably within a wide temperature window ranging from -40ºC to 85ºC.
To ensure a seamless, hassle-free out-of-the-box setup, the package includes a RoHS-compliant DB9 Female-to-Female Mini Gender Changer Coupler Adapter. This high-utility accessory eliminates male/female configuration mismatch issues, allows users to couple two serial cables for extended range, and ensures instant compatibility with any existing serial equipment without needing extra cables.
The device features a standardized IEEE 802.3 network interface via an RJ45 or RJ-45 Ethernet port with built-in Auto MDI/MDIX functionality for automated cable cross-detection. Security is prioritized with robust integrated WEP and WPA/WPA2 hardware encryption. For highly scalable commercial layouts, the converter supports an efficient network configuration of 1 TCP Server to 4 TCP Clients Broadcast, handling communication where each individual client unicasts directly back to the main server.
This fully configurable system features a DB9 Male serial interface that delivers a sweeping baud rate of 1,200~921,600 bps, custom 5, 6, 7, or 8 data bits, versatile None, Even, or Odd parity checking, and 1, 1.5, or 2 stop bits. The physical architecture provides maximum on-site control, featuring a DCE / DTE slide switch, a hardware Reset switch, a Mini USB port, an On/Off power slider, and a flexible 5~40 VDC Power Input. Dual-color LEDs provide instantaneous visual diagnostics, flashing Red for Status and Blue for Link. Measuring exactly 81.6 mm (L) x 31.75 mm (W) x 20 mm (H), its compact footprint features optional Cloud connectivity for deployment across Home Automation, Health and wellness monitoring, Smart Building, Smart Agriculture, Industrial automation, and Cloud systems.
Please refer to the user manual for the complete setup procedure.
Part No DWA-E485V2
UPC 618504198750
