DB9 Female Solder Ferrite Filtered Connector with Shielded Metal Hood

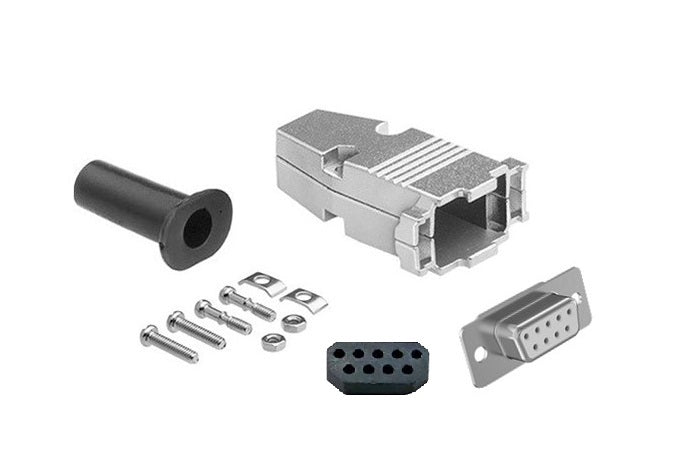

Product Name : D-Sub DB9 Solder Female Ferrite Filtered Connector DIY Kit with Shielded Metal Hood for 20 Wire Gauge. (DB9, Female)
Features:
- Eliminate Re-Radiation: Filtered Connector at Interface Leaves No Path for Bypassing the Filter.
- Ground Plane Shielding: Filtered Connector.
- Efficient Space Utilization: Filters Located in the Connectors.

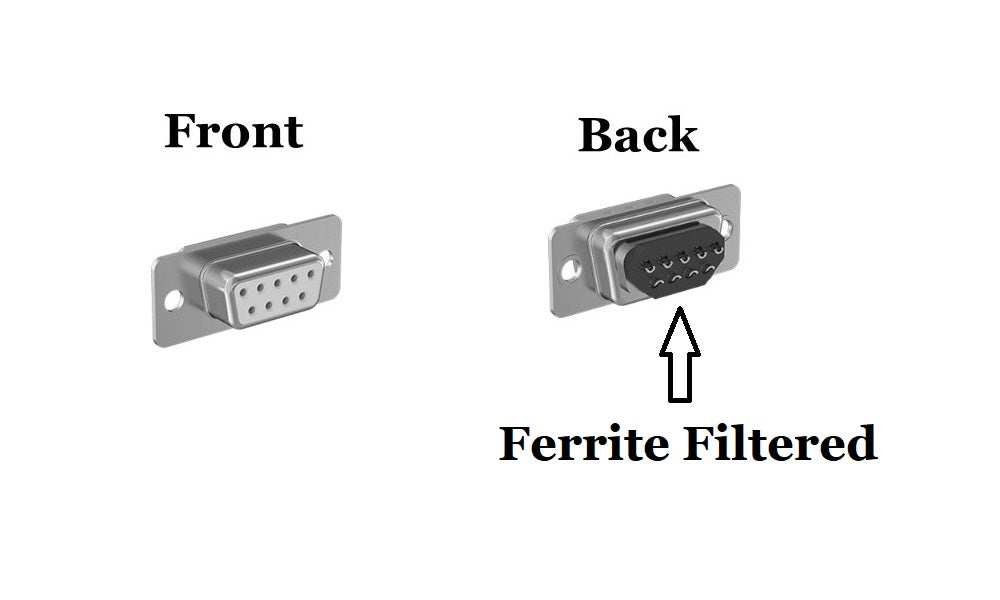

- Ferrite Filtered Block Reduces Data Destroying EMI/RFI. DB9 Female Plug, Data Application, Computer DB9 Serial Connection Type.
- Shell Material, Finish: Steel, Tin/Nickel-Plated. Gold Plated Contacts Provide Reliable Connections with Repeated Mating Cycles.
- Interference Reduction @ Frequency: 4.000db@1.000 GHz.
- Maximum. Current: 7.500A. Maximum Voltage: 250V AC. Mounting Hole Diameter: 3.000mm.
- Wire Gauge: 20 AWG.
Product Description:

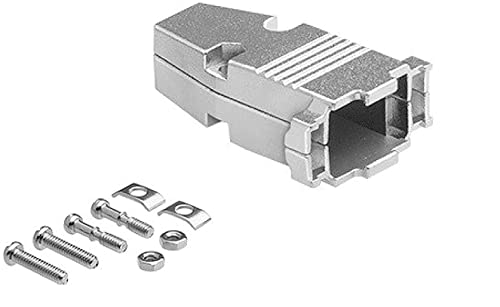

The CompuCablePlusUSA.com Best D-Sub DB9 Solder Female Ferrite Filtered is an Ideal DIY Kit for Reducing Data-Destroying Electromagnetic (EMI) and Radio Frequency Interference (RFI). The Connector Comes Equipped with a Shielded Metal Hood for Extra Protection and Improved Signal Clarity. Reliably Reduce EMI/RFI Interference for Enhanced Data Accuracy. The Solder Cup Terminals Ensure a Secure Connection by Holding Wire Leads in Place During Soldering. Assemble Your Damaged DB9 Cable with DB9 Female Solder Type Connector Kit with Shielded Metal Hood Connectivity.
UPC : 618504187921
Part Number : DSF-9FM-KIT
