D-Sub High Density 26 Pin Male Crimp Type DIY Kit with Shielded Metal Hood
Product Name
D-Sub high density 26 pin crimp type DIY kit with shielded metal hood, male connector, gold-plated crimp pins, screws, and strain relief grommets - for wire size #26 - #30
Features
- DIY & Pro - This pre-packed D-Sub kit has all the parts you need in one bag to streamline your RS-232 serial wiring applications for maximum efficiency and reliability.

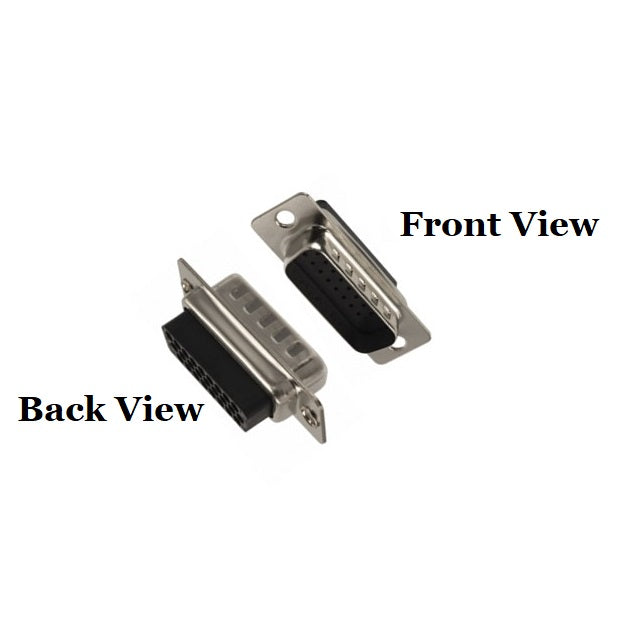

- High-Density Connector - Includes one 26-pin crimp type male connector for compact and reliable connections.
-

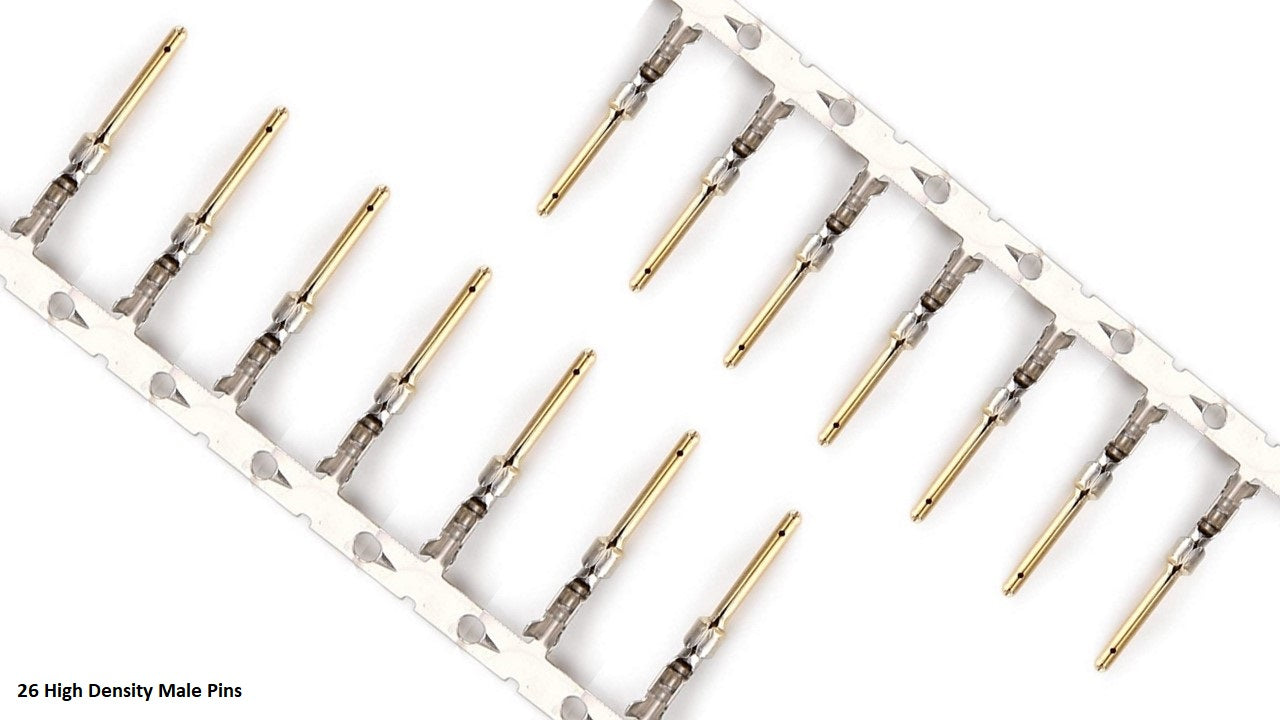

Gold Plated Terminals - Comes with 26 crimp-type male pins, gold flash plated over nickel for corrosion resistance and improved conductivity.

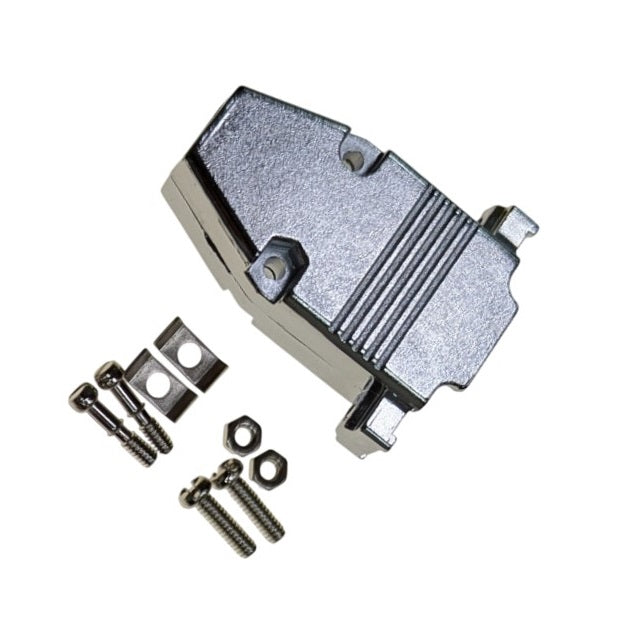

- Metal Hood Protection - Durable metal hood (OD:12mm) with screws, nuts, and washers for secure shielding and long-lasting durability.

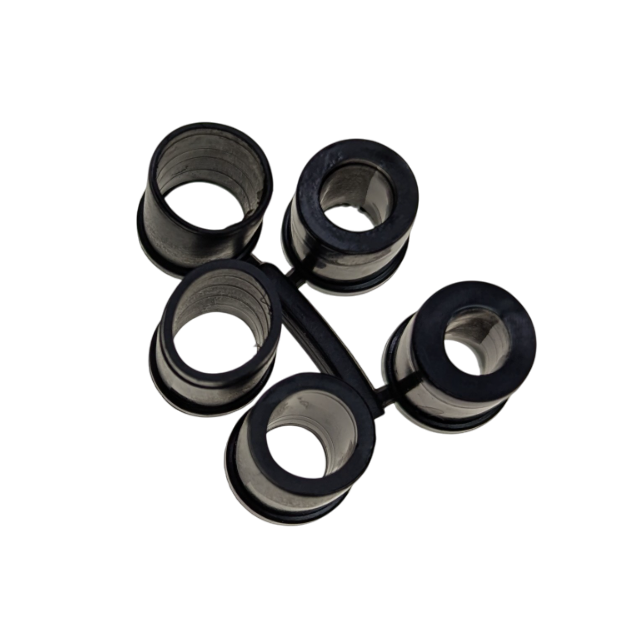

- Strain Relief Options - Five grommets in assorted outer diameters (9mm, 10mm, 11.5mm, 13mm, 14.5mm) reduce cable stress and ensure a snug fit.
- RoHS Compliant - RoHS compliance is meant to reduce the amount of hazardous chemicals used in electronic manufacturing.
Application
- Industrial Control Equipment
- Serial Data Transmission
- Tax Control Machine
- Industrial Instrument
- Device Management
- Data Network
- Cash Machine
- Computer
- Modem
Product Description
The D-Sub High Density 26 Pin Crimp Type DIY Kit is a complete solution for building, repairing, or customizing D-Sub cable assemblies with precision and durability. Designed for professional and DIY applications, this kit includes everything needed to assemble a secure and reliable connection.
The kit features one 26-pin high-density male crimp connector with gold flash plating over nickel at the contact area, ensuring superior conductivity and resistance to corrosion. It includes 26 crimp-type male terminals, compatible with wire sizes ranging from #26 to #30 AWG, providing flexibility for various wiring projects.
For added durability, the kit comes with a metal hood (OD: 12mm) complete with screws, nuts, and washers, offering secure housing and protection for your connections. It also includes five strain relief grommets in assorted outer diameters (9mm, 10mm, 11.5mm, 13mm, 14.5mm) to ensure proper fit, minimize cable stress, and extend cable life.
Whether you’re assembling cables for RS-232, industrial equipment, or custom wiring harnesses, this all-in-one kit provides the essential parts to streamline your workflow. Ideal for engineers, technicians, and electronics enthusiasts, it combines high-quality components with ease of use for dependable results.
UPC 618504185513
Part Number DCT-26HMM-KIT and DCT-26HMM-KIT-MF
