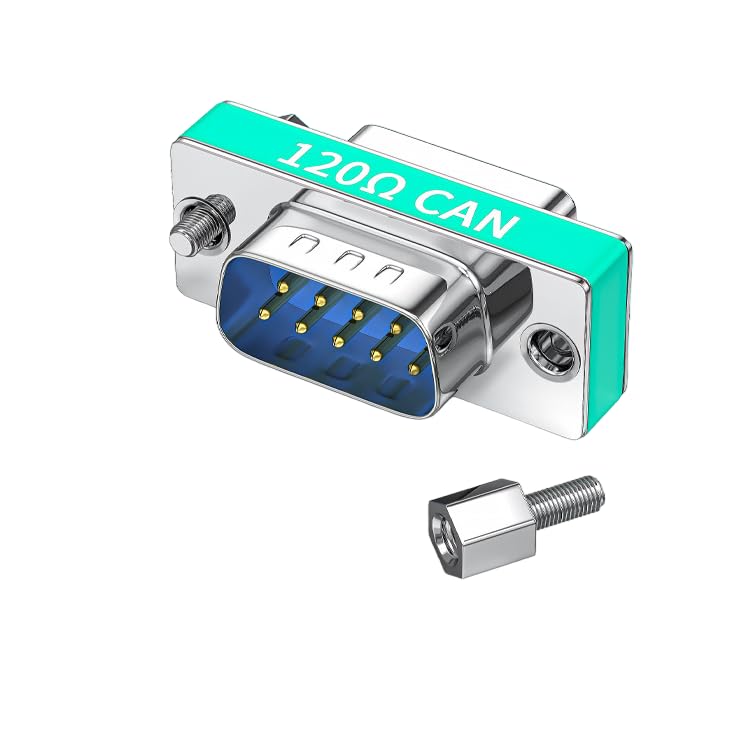

CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. (DB9, Male to Female, 120 Ohm, CAN Bus 1 PC/Pack) .

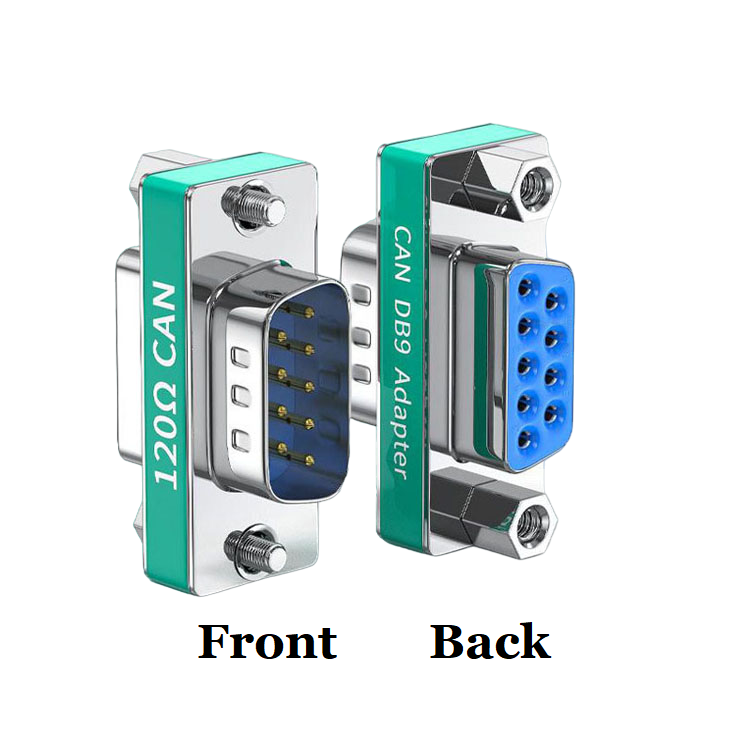

CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. Front View and Back View.

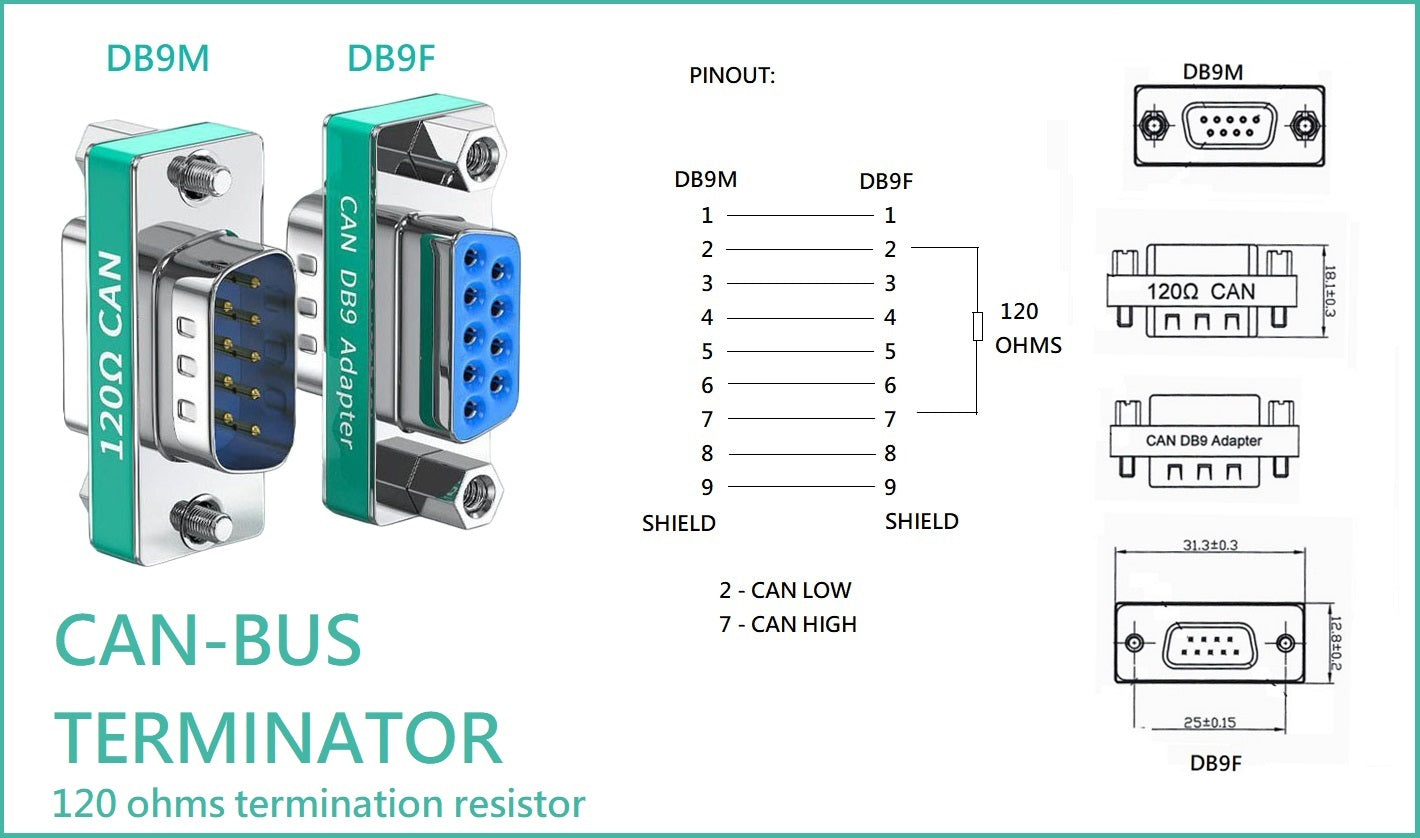

CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. 120 Ohm to Pin 2 and Pin 7.
CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. (DB9, Male to Female, 120 Ohm, CAN Bus 1 PC/Pack) .
CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. Front View and Back View.
CompuCablePlusUSA.com DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. 120 Ohm to Pin 2 and Pin 7.

DB9 Male to Female Built-in 120 OHM CAN Bus Terminating Resistor

MINIGC-9D

$15.00
/
Tax included. Shipping calculated at checkout.

Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

Ex: Shipping and return policies, size guides, and other common questions.

Product Title

DB9 Male to Female CAN Bus Termination Resistor Built-in 120 Ohm CAN Terminating Resistor. (DB9, Male to Female, 120 Ohm CAN Bus 1 PC/Pack)



Features

  • D-Sub 9 Pin Male to Female. It Features a Male DB9 on One Side and a Female DB9 on the other, Providing Both Flexibility and Stability. This DB9 Adapter Ensures Reliable Connection with Its 120 Ohm Impedance Built-in.
  • This CAN Bus DB9 Pin Terminal has a Built-in High-Precision Matching Resistance of 120 Ohm, with an Accuracy of Up to 1%. It Provides a 1/4 Watt Power Capacity for Reliable Performance.
  • This Product Offers Reliable CAN Bus Communication, with Signal Pins Featuring an L Signal on PIN 2 and an H Signal on PIN 7 for Efficient Connectivity.
  • This Product Features a Resistance of 120 Ohms Placed Between Pin 2 and Pin 7 to Ensure a Reliable Communication Protocol by Filtering out Bus Terminal Echo Interference.
  • RoHS.



Product Description

It Features a 9-Pin Male D-Sub Plug Connector and Female D-Sub Socket with a 120 Ohm Terminating Resistor Between Pins 2 and 7. This Adapter is ideal for Terminating a CAN Node without Internal Termination or When no CAN Node is Connected to the Bus. This CAN Bus Terminal Resistor Features a 120 Ohm Resistor that is Connected Between the CAN High / CAN Low Pins, Providing Reliable Signal Quality. The Design Ensures Reliable Power and Signal Transmission Between Components and Systems, Ensuring an Optimal Performance.

UPC 618504188263

Part Number MINIGC-9D or MINIGC-9D-MF
