Name: CompuCablePlusUSA SC to SC OM4 Multimode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F6-M4SCSC-01M
Price: 15.75 USD
Availability: InStock

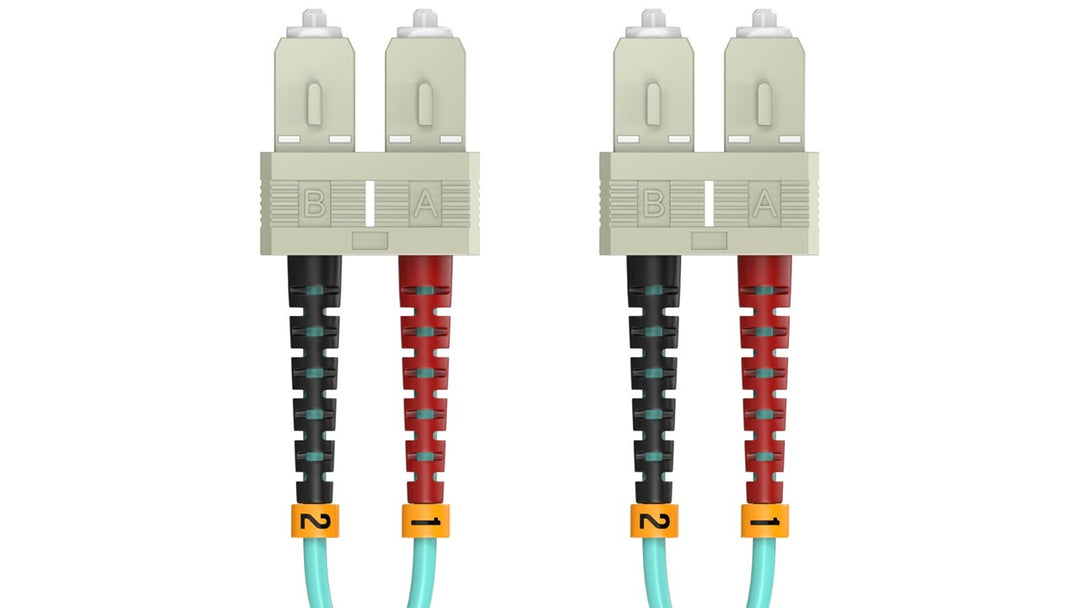

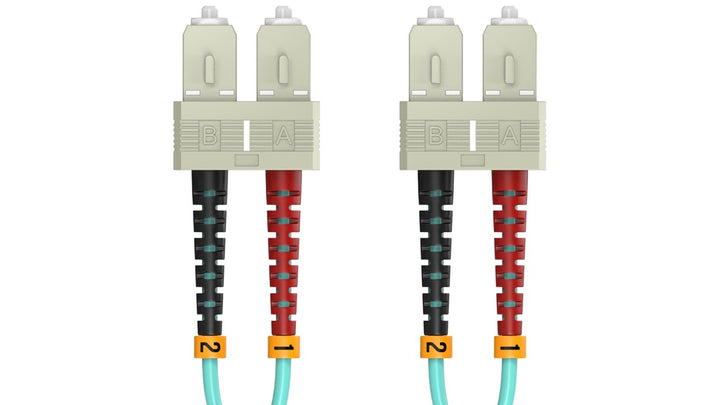

CompuCablePlusUSA SC to SC OM4 Multimode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua.

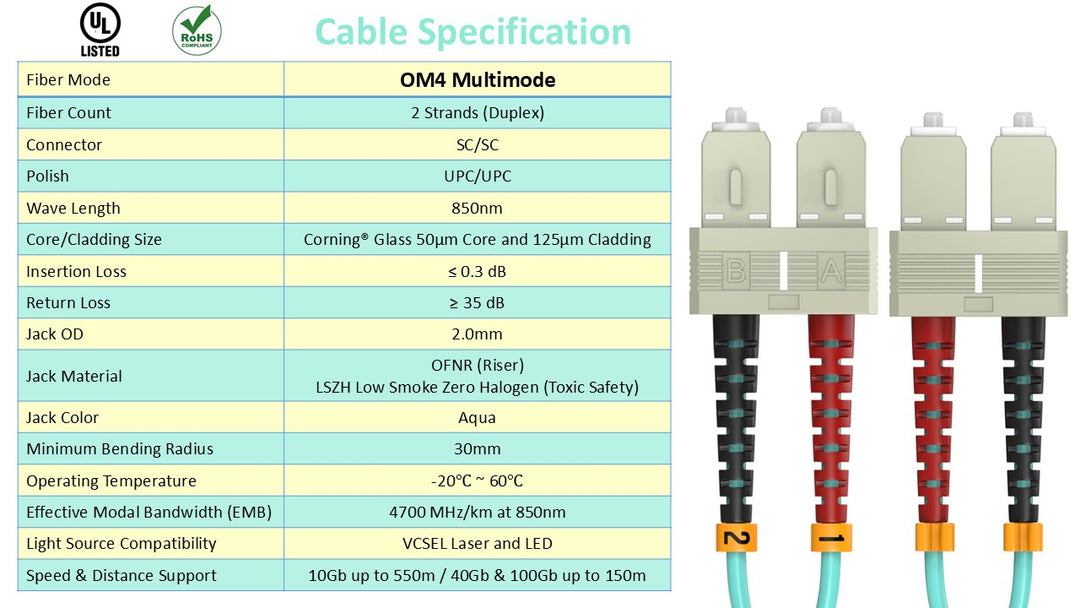

CompuCablePlusUSA SC to SC OM4 Multimode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua, Cable Specification Table.

$15.75

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA SC to SC OM4 Multimode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua, 1M

Features

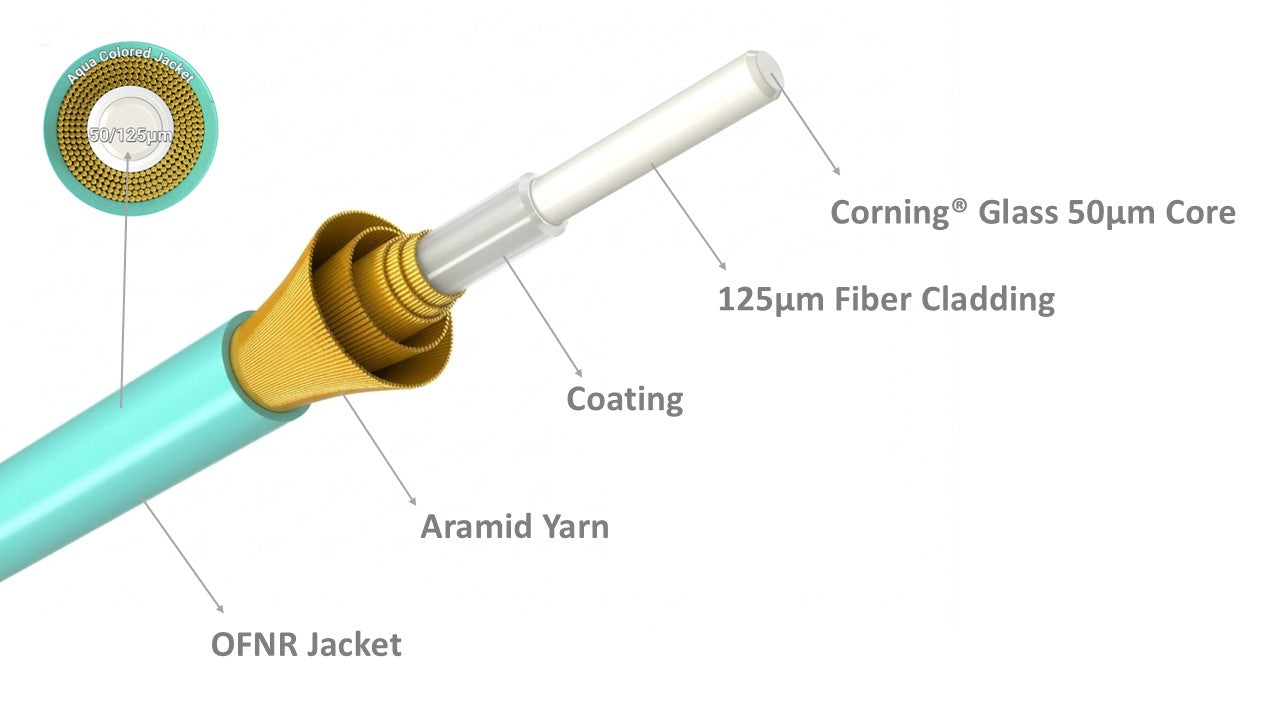

Premium Corning Glass: Premium Corning Glass 50 micrometer core and 125 micrometer cladding for maximum durability and low attenuation.
Technical Mode/Speed: OM4 Multimode 2 Strands supporting 10Gb up to 550 meters, 40Gb up to 150 meters, and 100Gb up to 150 meters.

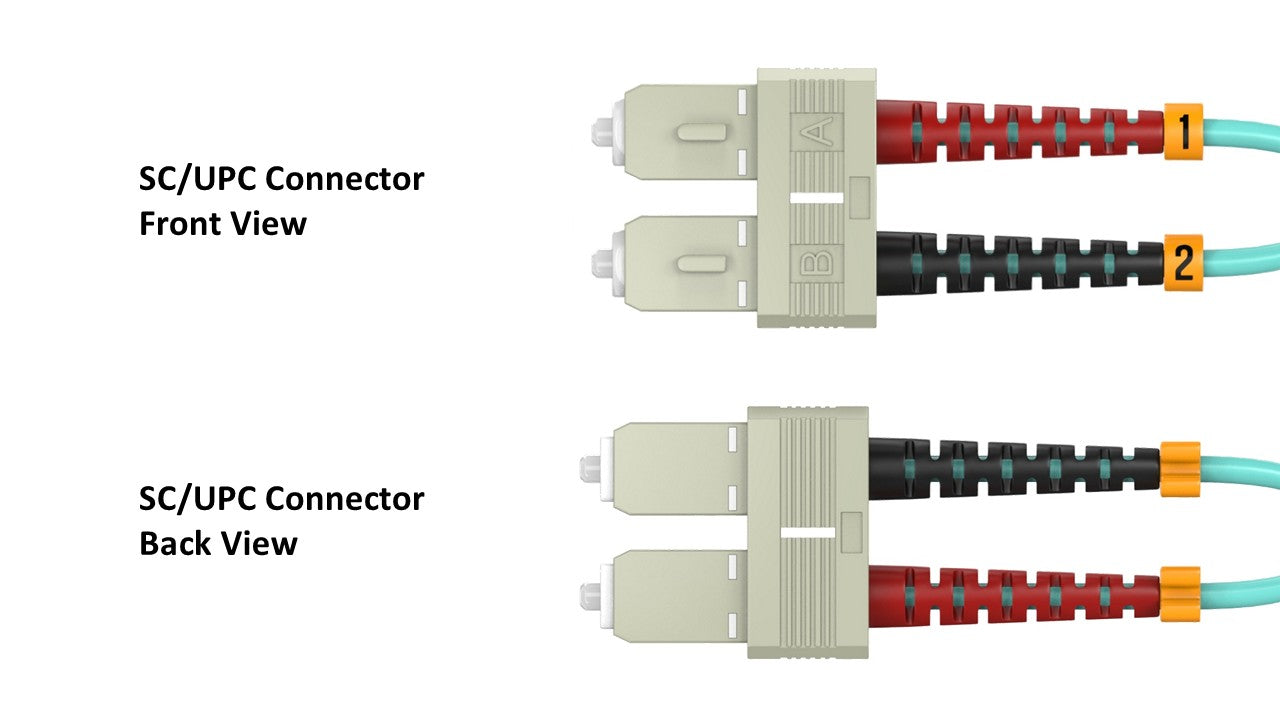

Connector Integrity: Duplex SC/UPC to SC/UPC connectors featuring integrated secure locking latches.
Legacy Compatibility: Backward compatible with existing 50/125 multimode fiber networks and older LED-based systems.
Low Loss Metrics: Exceptional signal performance featuring insertion loss less than or equal to 0.3 dB and return loss greater than or equal to 35 dB.
Wavelengths: High Effective Modal Bandwidth of 4700 MHz/km at 850nm.
Light Source Compatibility: Optimized for use with LED and VCSEL laser light sources.
Jacket OD: Duplex dimension measuring exactly 2.0 mm by 4.1 mm.
Safety Ratings: OFNR Riser-rated for vertical shafts and between-floor installations.
Bending Radius: Minimum bending radius of 30 mm protects against signal attenuation.
Lengths and Color: Available in multiple sequential lengths to fit custom rack configurations, Aqua.
Quality Certifications: Individually tested with test report included in each package, UL listed, and RoHS compliant.

Product Description

Elevate your network infrastructure with the CompuCablePlusUSA OM4 Multimode Fiber Patch Cable, engineered specifically for high-capacity demands including Fast Ethernet, Fiber Channel, and Gigabit Ethernet systems. Designed to deliver superior reliability in enterprise environments, this duplex cable provides the robust backbone necessary for modern high-speed data communications. It ensures seamless integration and maximum uptime for critical network operations.

The SC connector features additional latches to secure the installation and removal with similar features to LC connectors, preventing accidental disconnections and ensuring a stable physical connection. This precise push-pull coupling mechanism guarantees consistent alignment of the optical fibers, minimizing signal degradation and maximizing hardware performance over time.

Optimized for high-density setups, this cable helps streamline cable management in congested patch panels and server racks. It supports advanced LED and VCSEL laser light sources while remaining fully backward compatible with legacy LED-based 50/125 multimode legacy applications. This versatility makes it the perfect future-proof choice for evolving data center architectures.

Part No F6-M4SCSC-01M

UPC 618504197777
