Name: CompuCablePlusUSA LC to ST OM3 Multi-Mode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua
Brand: CompuCablePlusUSA- Providing Connectivity Solutions
SKU: F6-10LCST-01M
Price: 15.5 USD
Availability: InStock

CompuCablePlusUSA LC to ST OM3 Multi-Mode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua

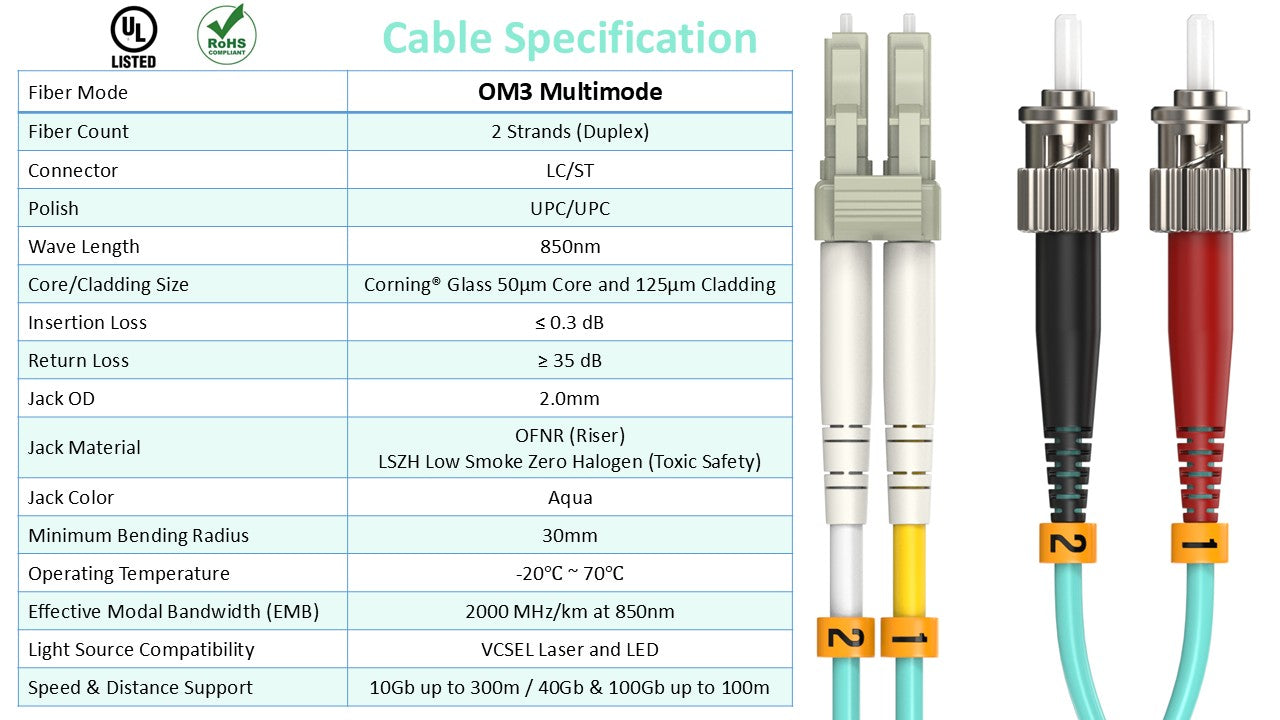

CompuCablePlusUSA LC to ST OM3 Multi-Mode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua, Cable Specification Table.

$15.50

Shipping calculated at checkout.

Free Ground Shipping on orders over $45

Free UPS Ground for All Bulk Wire Purchases (Contiguous United States only).
$7.99 Flat Shipping for orders under $45.
Free UPS Ground or Free USPS Standard Shipping for orders $45 or more (Contiguous United States only).
Free UPS 3-Day Shipping or Free USPS Priority for orders over $350 (Contiguous United States only).
For Alaska, Hawaii, and other U.S. Territories: Free UPS or USPS Standard Shipping for orders over $150, excluding all bulk wires.
Contact Us for a Large Order Discount, Custom Cables, or Government Purchases.
Same-Day Shipping for most stocked items.
International Customers: Import duties, taxes, or customs fees are the recipient's responsibility. Please check with your local customs office for details.
For more shipping details, please check our Shipping Policy.

Product Title

CompuCablePlusUSA LC to ST OM3 Multi-Mode Fiber Patch Cable Duplex UPC 50/125 Corning Glass, OFNR Riser, Aqua, 1M

Features

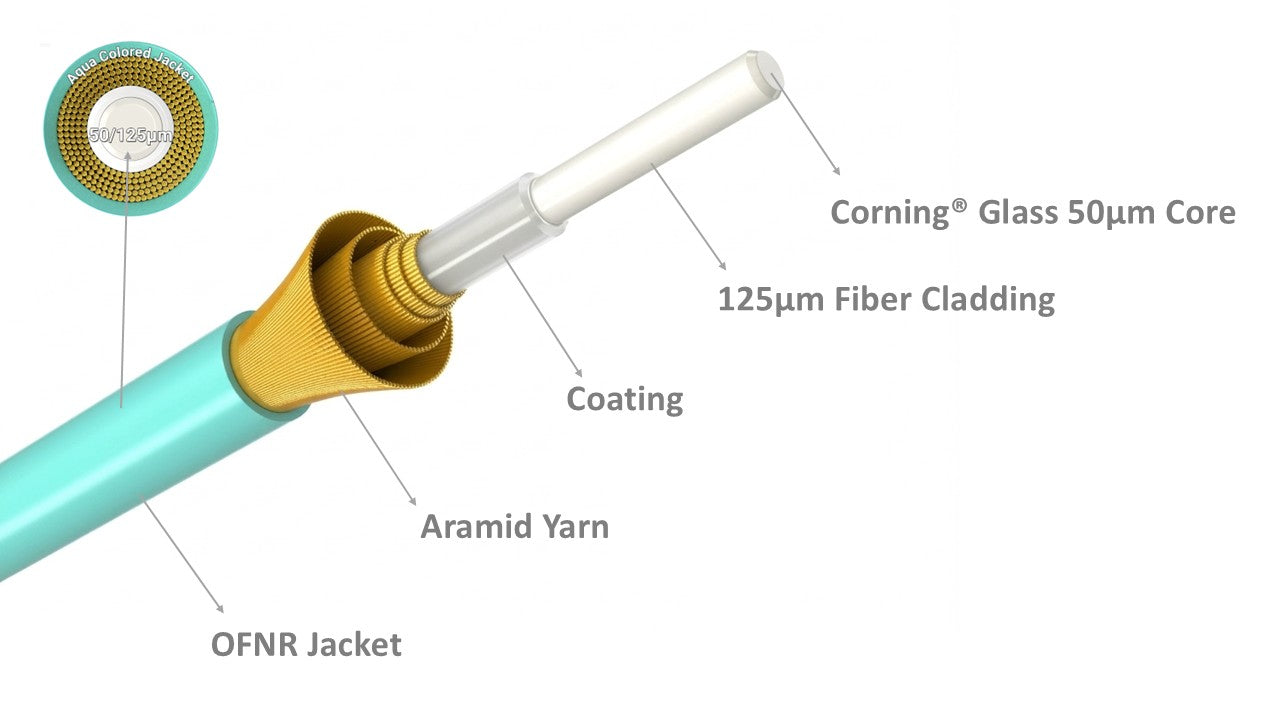

Premium Glass Quality: Built with premium Corning 50 micrometer core and 125 micrometer cladding for superior structural integrity.
Technical Mode/Speed: OM3 Multi-mode supporting 10Gb up to 300 meters, as well as 40Gb and 100Gb up to 100 meters.

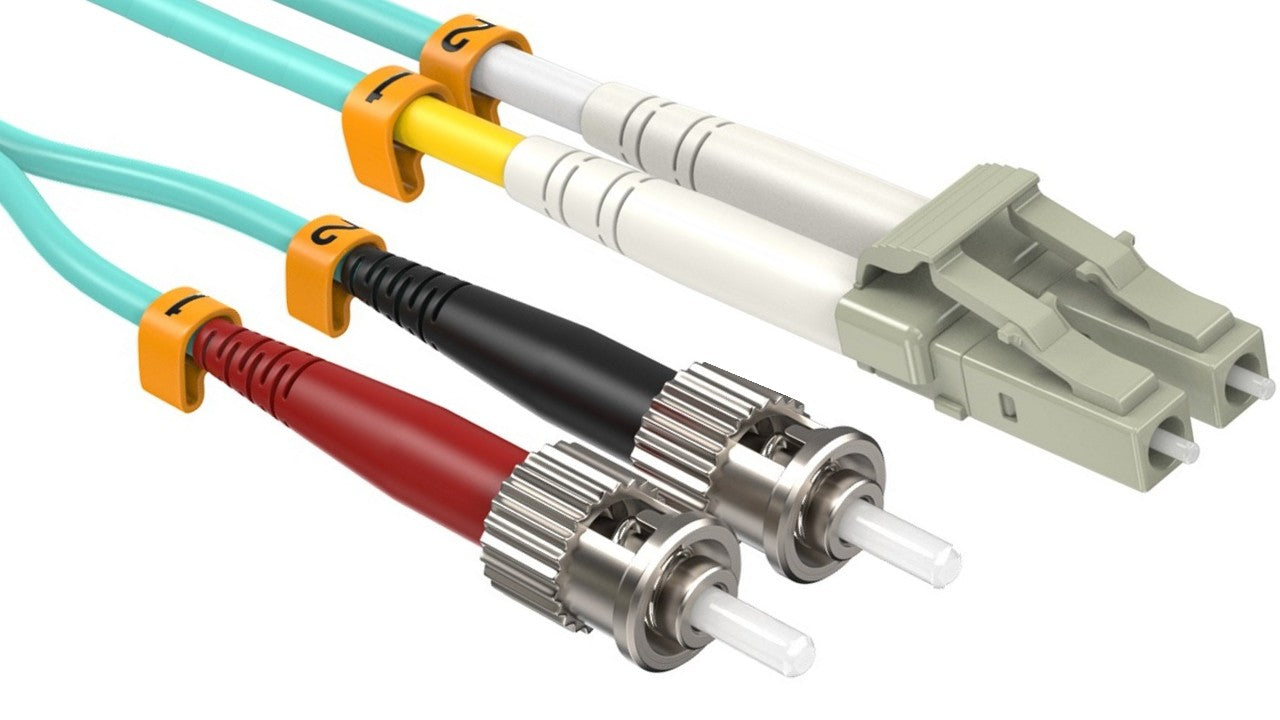

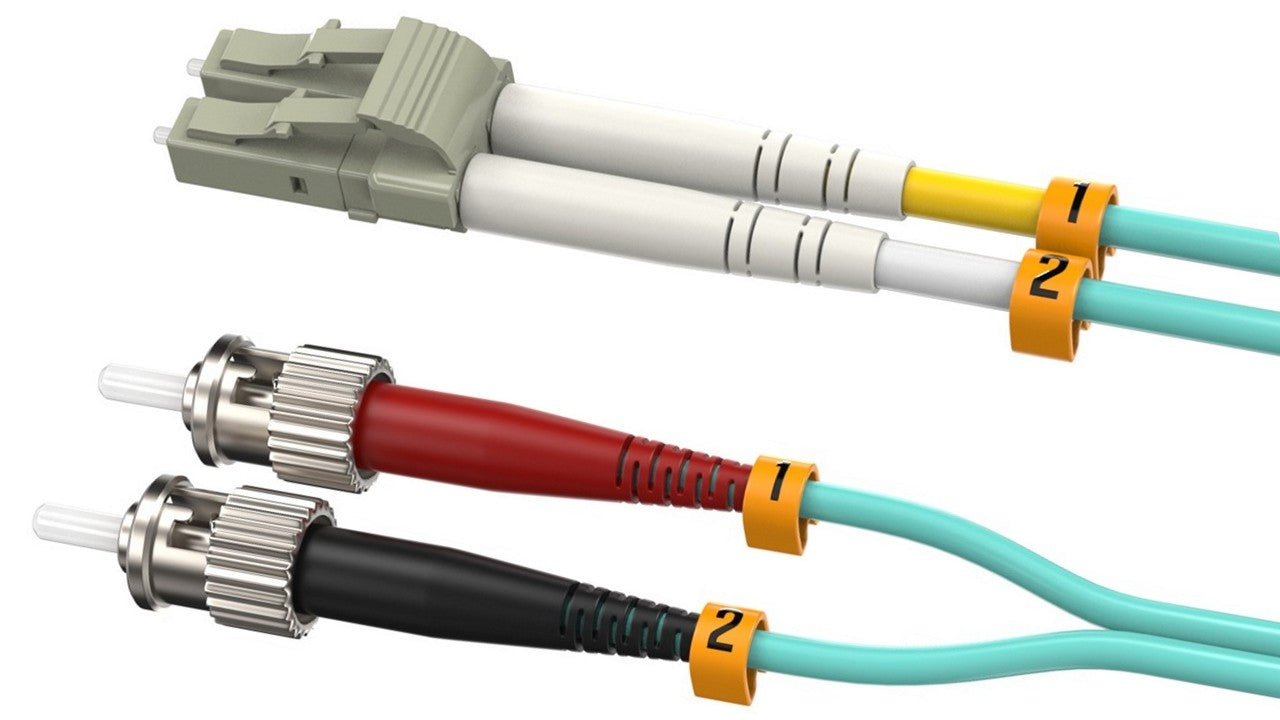

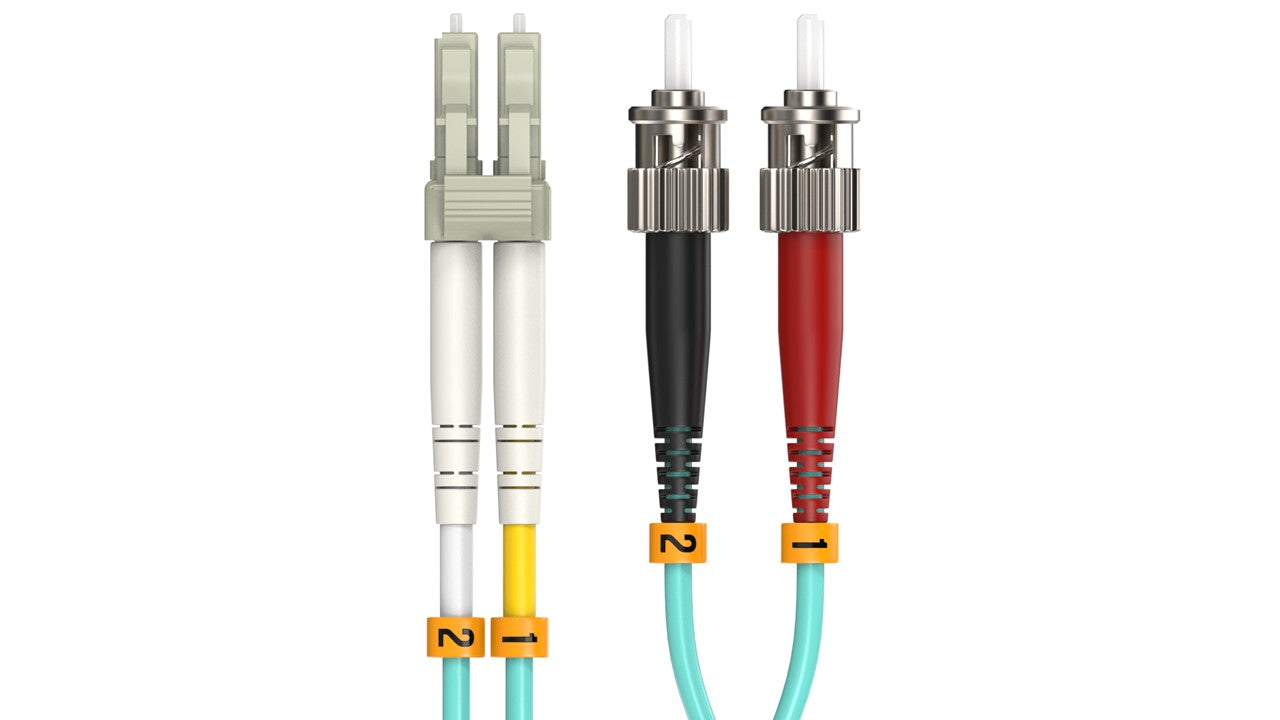

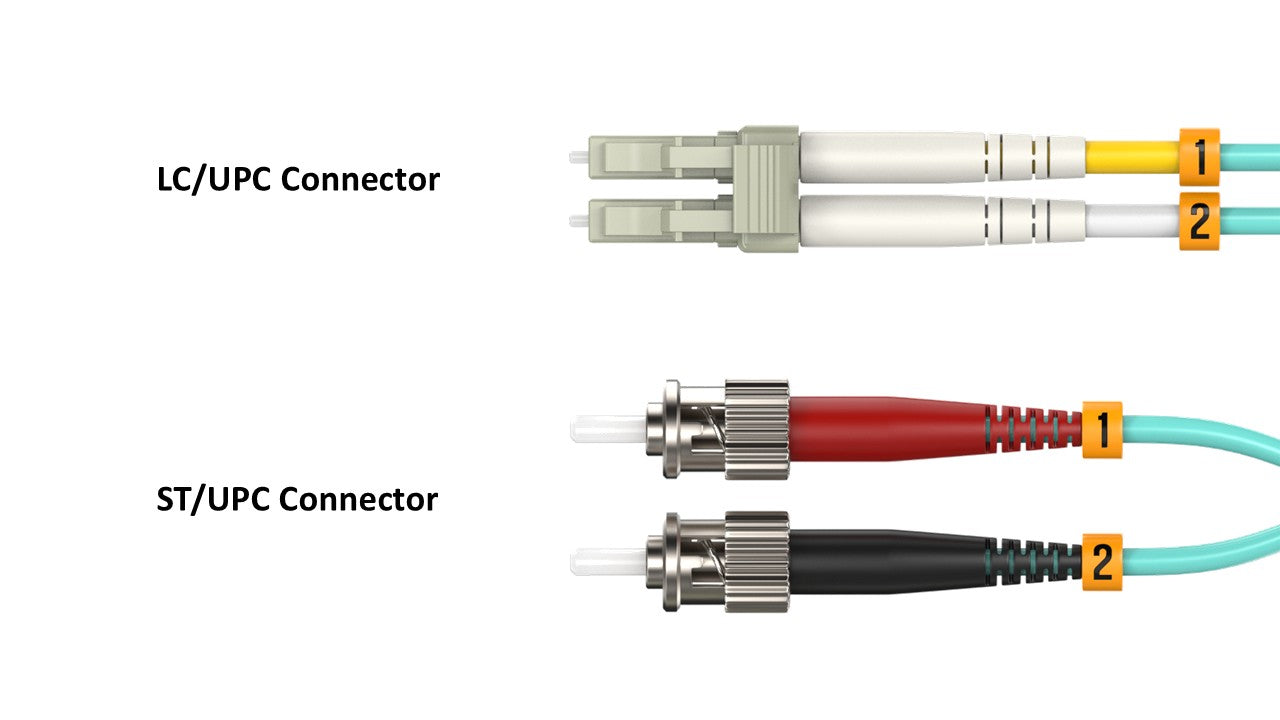

Connector Type Versatility: Fiber Connector LC/UPC to ST/UPC configuration built for dual-strand duplex applications. The small LC connector is perfect for high-density network applications. The other ST connector is designed with a bayonet mount and locking system.
Low Loss Metrics: Low insertion loss less than or equal to 0.3 dB and a high return loss greater than or equal to 35 dB.
Legacy Compatibility: Backward compatible with existing 50/125 multimode fiber networks and older LED-based systems.
Wavelengths: Built for use with LED and VCSEL laser light sources at 850nm.
Jacket OD: Slim 2.0mm outer diameter for streamlined cable management.
Safety Ratings: LSZH/OFNR (Riser) rated fiber cable ideal for use in upright shafts that run between building floors.
Bending Radius: Minimum bending radius of 30 mm protects the fiber core from internal stress.
Lengths and Color: Available in various lengths to fit your specific server rack requirements, Aqua.
Quality Certifications: UL, cUL, and RoHS compliant design; an official test report is included in each cable package.

Product Description

Upgrade your network infrastructure with the CompuCablePlusUSA OM3 Multi-Mode Fiber Patch Cable. Engineered with a premium Corning 50 micrometer core and 125 micrometer cladding, this duplex cable supports 10Gb speeds up to 300 meters, and 40Gb or 100Gb up to 100 meters.

It features a high-density LC to ST configuration with Ultra Physical Contact (UPC) polishing. The bayonet-mount ST connector ensures a secure lock. Built for reliability, it features low insertion loss under 0.3 dB and high return loss over 35 dB at 850 nanometer wavelengths using LED and VCSEL light sources.

Designed for safety, the slim 2.0 millimeter aqua jacket carries a Low Smoke Zero Halogen and Riser rating for upright building shafts. With a flexible 30 millimeter minimum bending radius and UL, cUL, and RoHS certifications, each cable includes an official test report to guarantee peak server rack performance.

Part No F6-10LCST-01M

UPC 618504197272
